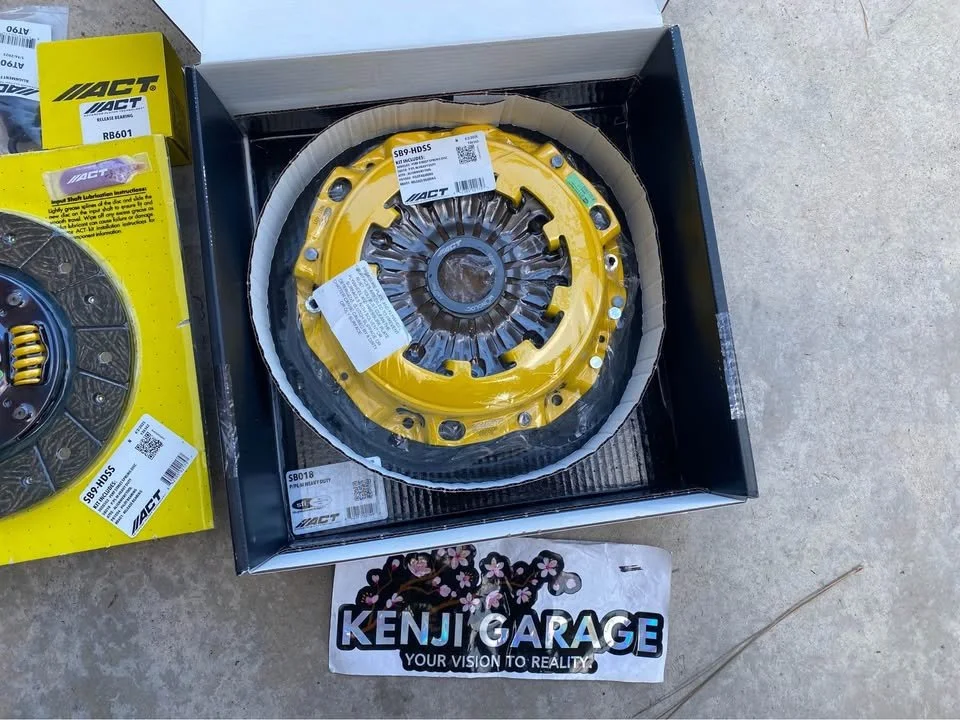

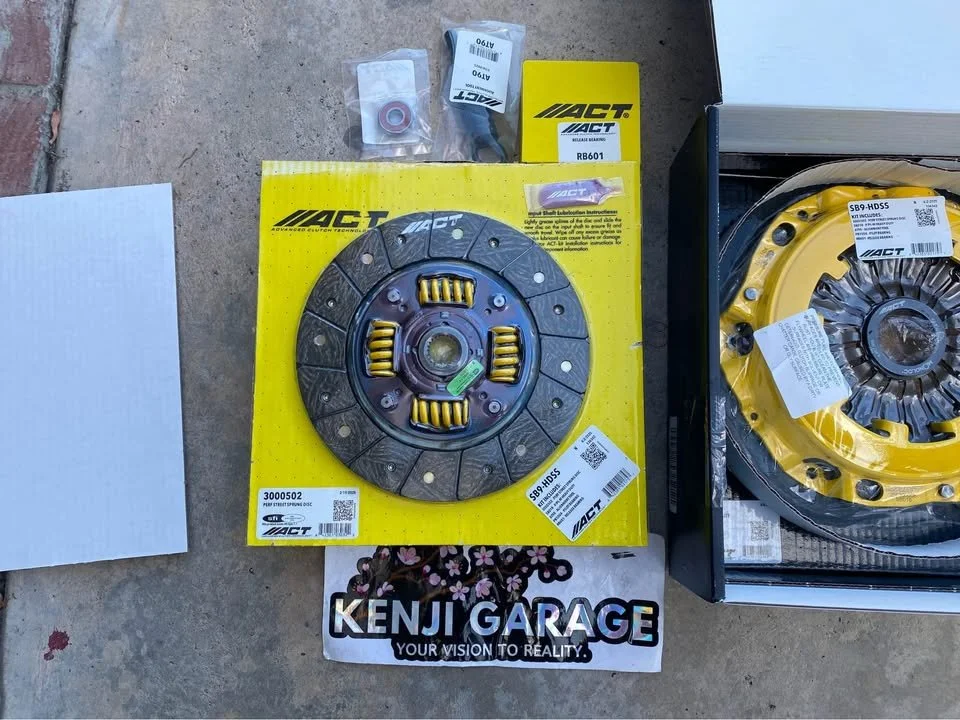

Part Number: SB9-HDSS

Description: ACT HD-M/Perf Street Sprung Clutch Kit

Product Weight (lbs.): 16.3

Torque Capacity (ft/lbs.): 434

Torque Capacity Over OE: 27%

Pressure Plate Type: Heavy Duty

Clutch Disc Diameter: 228

Input Spline Quantity: 24

Input Shaft Diameter: 1

Part Fitment Requirement: Includes ACT Monoloc.

Disc Material: Organic

Pilot Bushing Included: No

Release Bearing Included: Yes

Alignment Tool Included: Yes

Grease Included: Yes

Pilot Bearing Included: Yes

Disc Type Sprung Solid: Sprung

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Pressure Plate Bolts Included: No

Flywheel Bolts Included: No

Fitment: 02-05 Subaru WRX w/ACT Flywheel

Details:

SB9-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
