Part Number: SB9-HDG6

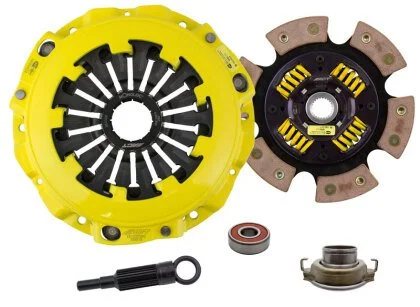

Description: ACT HD-M/Race Sprung 6 Pad Clutch Kit

Product Weight (lbs.): 16.7

Torque Capacity (ft/lbs.): 555

Torque Capacity Over OE: 63%

Pressure Plate Type: Heavy Duty

Clutch Disc Diameter: 228

Input Spline Quantity: 24

Input Shaft Diameter: 1

Part Fitment Requirement: Includes ACT Monoloc.

Disc Material: Ceramic

Pilot Bushing Included: No

Release Bearing Included: Yes

Alignment Tool Included: Yes

Grease Included: Yes

Pilot Bearing Included: Yes

Disc Type Sprung Solid: Sprung

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Pressure Plate Bolts Included: No

Flywheel Bolts Included: No

Fitment: 02-05 Subaru WRX w/ACT Flywheel

Details:

SB9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
