(1st Picture) HP48 (280 Lumens)

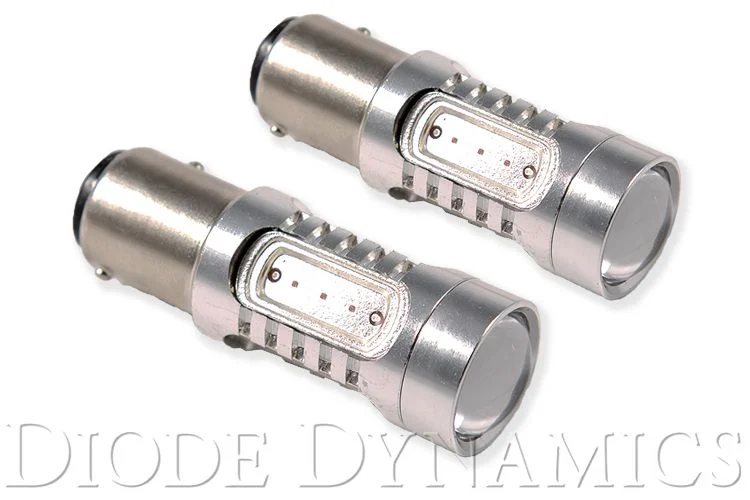

(2nd Picture) HP11 (310 Lumens)

(3rd Picture) XP80 (510 Lumens)

(4th Picture) HP23 (410 Lumens)

Features

• Modern LED appearance with instant on and off

• Direct replacement for Subaru WRX front turn bulbs

• Plug and play, no modification with factory 1157 bulb size

• Multiple brightness levels available

Overview

LED Indicators. The factory incandescent turn signals on the Subaru WRX & STI illuminate in a slow glow, taking a moment to turn off and on. With replacement LED bulbs, you can immediately update your vehicle with the instant on-off blinking of modern LEDs. This instant activation adds a modern and distinct look

Dual Brightness. The WRX & STI uses a 1157 dual-filament bulb. They light up with low power as parking lights, then they get brighter when the turn signal or hazards are activated. The brightness ratio of your factory bulbs is traditionally 15:100, or 15% lumen output for the dim function. Diode Dynamics bulbs are designed to match this, so there is enough distinction between "low" and "high" brightness levels. As with all Diode Dynamics LED bulbs, these turn signal bulbs are rated with accurate, measured lumen figures, not calculations or guesses.

Switchback. The dual-filament function of your factory turn signal bulbs gives you the ability to choose a unique LED bulb model: switchback! These bulbs illuminate in a bright white for the "low" power setting for your running/parking light, then switch to intense amber when the turn signals are activated. When the turn signal is switched off, they return to the original white output. The result is a modern dual-color effect, as seen on many high-end vehicles on the road. Please note: in order to properly see the white, you must have clear reflectors/lenses over the turn signal bulb. If your WRX has amber reflectors, you might be able to find clear aftermarket ones to complete this upgrade!

Reduced Load. When it comes to LED upgrades, you'd think the lower power draw would be a great feature! However, the WRX & STI looks for a specific power draw from the turn signals. LEDs will make the vehicle think a bulb has gone out, due to lower power draw. This causes a "hyperblink," or fast-blinking turn signal, which can be corrected with LED Resistors or an LED Flasher.

The most basic, tried-and-true method to correct hyperblinking is to add resistors. These can be used on any vehicle, because a 6-ohm resistor uses about the same power as a standard turn signal bulb. One resistor is needed to replace each turn signal bulb.

You may have also heard of flasher relays, which is the actual module that determines flash speed. On some vehicles, it can be replaced with one that is designed for LED power levels. However, on many newer vehicles these modules cannot be replaced. If it's possible to replace the flasher on the WRX & STI, you'll see one listed above. Only one flasher is needed per vehicle, for both front and rear LED turn signal conversions.

Reliability. Diode Dynamics LEDs are built with constant-current inductive circuitry, along with transient suppression. They are tested by our engineering team with a device that replicates years of voltage spikes, like the ones generated each time the alternator starts and stops on your WRX. This is what kills most LED bulbs over time, but just like factory components, Diode Dynamics LEDs are designed with built-in circuit protection. While more expensive than simple bulbs, this allows Diode Dynamics LEDs to last for years, with no flickering or failure.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a Subaru or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

Quantity: Two (2)

Warranty: 3 year warranty

100% Satisfaction Guarantee

Fitment

NOTE: Please check factory bulb size before ordering as some models may have a different bulb size.

Bulb Size: 1157

Application: Front Turn
