Part Number:

2025130 (8CM / Internal)

2025134 (8CM / External)

2025131 (8CM / 18psi TiAL MVI)

2025140 (10CM / Internal)

2025144 (10CM / External)

2025141 (10CM / 18psi TiAL MVI)

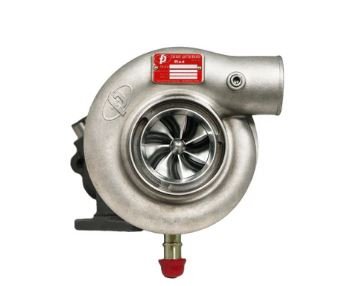

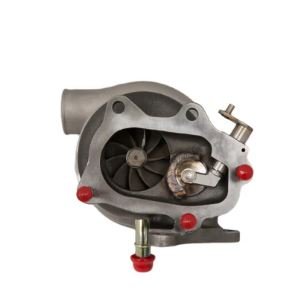

Description: Forced Performance Red Turbocharger

Fitment: 08-14 Subaru STI / WRX

Notes: Not for sale in California not CARB Legal

Details:

Oil supply line and gasket set included!

FP Red

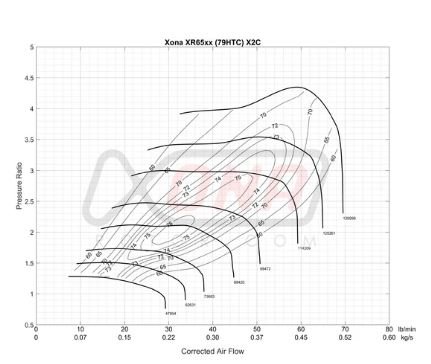

• Compressor wheel - HTZ 79

• Flow rating - 65LB per minute

• CW Measurements - 57.3MM Inducer / 79MM Exducer

• TW Measurements - 67.3MM Inducer / 58.8MM Exducer

• Compressor Housing - 84MM FAP Cover

• Turbine Housing - FP 8CM or 10CM Turbine Housing

• CHRA - FP Journal Bearing

• Oil Line - Included

Redesigned in 2018, the FP Red has our HTZ 79 compressor wheel in our 84MM Flow Advancement Port™ compressor cover to give you the same power as the old Red with massively improved spool and response time. Internal gate turbos are available with either the stock canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.

Oil Feed Line Installation Instructions

Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.

THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
