Part Number:

2027060 (Wastegate Internal Wastegate)

2027062 (External Wastegate)

2027061 (18psi TiAL MVI)

Description: Forced Performance XR Black 82HTZ Turbocharger

Fitment: 08-14 Subaru STI / WRX

Notes: Not for sale in California not CARB Legal

Details:

• Compressor wheel - 82HTZ

• Flow rating - 71LB per minute

• CW Measurements - 59.1MM Inducer / 82MM Exducer

• TW Measurements - 67.7MM Inducer / 62.2MM Exducer

• Compressor Housing - 84MM FAP Cover

• Turbine Housing - FP 10CM Turbine Housing

• CHRA - Xona Rotor

• Oil Line - Included

• Gasket Set - Included

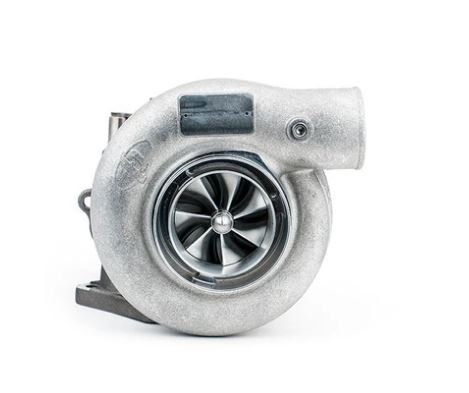

The FP Black™ turbocharger features the 82mm HTZ™ compressor section with our 84MM Flow Advancement Port™ compressor cover coupled to the 10cm2 turbine section. The FP Black™ flows 71LB a minute and is capable of producing upwards of 575WHP. Internal gate turbos are available with either the stock canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.

In addition to the things you know and love about the journal bearing Black, this unit utilizes our Xona Ball Bearing CHRA for increased durability in situations where you might see low oil flow such as road racing or autocross applications. XR turbos have an M12x1.25 oil inlet in the bearing housing, allowing use of our Oil Feed line.

Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.

THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
