Part Number: IS-RSTD05HR

Description: RS TD05HR 20G Turbocharger

Fitment: 10-14 Hyundai Genesis 2.0T Coupe

Details:

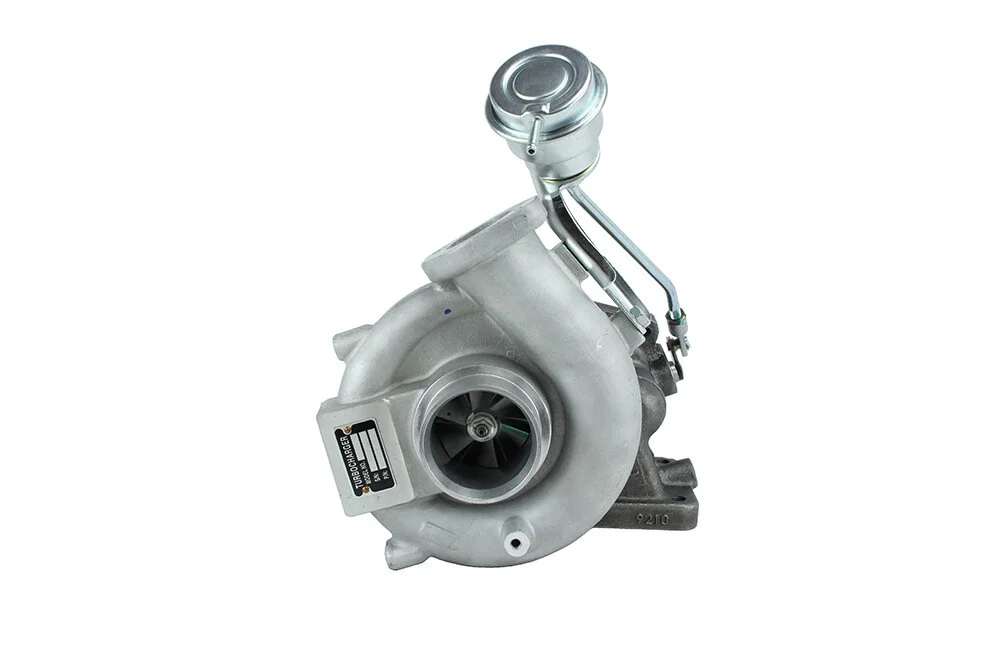

ISR Performance RS TD05HR 20G Turbocharger for Genesis 2.0T upgrade

Introducing the ISR RSTD05HR 20G turbo. Using an upgraded 20G compressor wheel and factory style turbine wheel the ISR TD05HR delivers a greatly increased power range while maintaining quick spool, all in the compact bolt on style Evo 9 compressor and turbine housings.

This is a great inexpensive upgraded turbo for your Genesis 2.0t when using the ISR EVO 8/9 Bolt-on Turbo Upgrade. No more using used stock Evo 9 16G turbos.

Using high quality component including step gap rings & performance thrust bearings, all ISR turbos are fully balanced and assembled in the USA.

** Requires the use of the ISR Performance EVO 8/9 Bolt-on Turbo Upgrade for the Genesis Coupe 2.0T THIS WILL NOT BOLT ON TO THE FACTORY Genesis 2.0t TURBO MANIFOLD **

• Compressor wheel: 52.5 mm / 68 mm

• Turbine Wheel: 56 mm / 49.2 mm

• Turbine Housing 10.5cm A/R

• Journal Bearing

• Water cooled and Oil cooled

• Actuator pressure 1.2 Bar / 18 psi
