Part Number: PRL-HC9-IM-ZDX-A

Description: PRL RBC Intake Manifold to 70mm J37 (ZDX/ MDX) Throttle Body Adapter

Details:

Fits all 2012-2015 Civic Si
Fits all variant models including RHD, International Models, Etc.

Overview

Application: ZDX or MDX / Pilot Throttle Body on RBC / RRC Bolt Pattern Intake Manifold

Technical Notes:

It's no secret that Honda's RRC and RBC intake manifolds are some of the best flowing intake manifolds available from Honda for the K-Series engine. RBC and RRC manifold swaps are a popular solution for engines equipped with less desirable intake manifolds like the 2012 - 2015 9th Gen Honda Civic Si, 2013 - 2015 Acura ILX, 2009 - 2014 Acura TSX or 2008 - 2012 Honda Accord. Often times these manifold swaps require a throttle body adapter. We offer a billet throttle body adapter machined from 6061 aluminum to seamlessly adapt a specific DBW or drive-by-wire throttle body to the intake manifold. A 70mm ZDX / MDX throttle body upgrade is a great way to increase airflow for these newer DBW K-Series cars. It offers OEM reliability and drivability at an affordable price.

This throttle body adapter utilizes an O-ring to seal against the intake manifold and OEM Honda gasket to seal against the throttle body. A 1/8" NPT port and 90 degree fitting retains the factory EVAP Purge, but can also be deleted or plugged for a cleaner install. EVAP can be disabled with an engine tuner like Hondata FlashPro or KTuner.

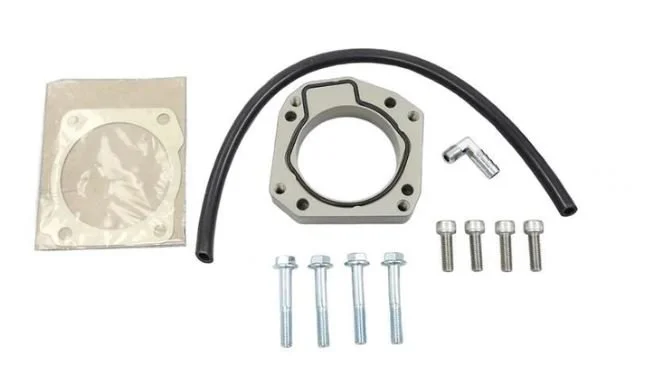

ZDX Throttle Body Kit:

• (1) PRL Motorsports Anodized Throttle Body Adapter

• (1) Size 152 O-Ring

• (1) Section Vacuum Hose

• (4) M8 x 25mm SHCS Bolts

• (4) M8 x 50mm Flange Bolts

• (1) 90 Degree EVAP Fitting

• (1) Honda OEM Throttle Body Gasket

16400-RYE-A11 J37 Throttle Body From:

• 2010, 2011, 2012, 2013 Acura MDX

• 2010, 2011, 2012, 2013 Acura ZDX

• 2008, 2009 Honda Accord

• 2007, 2008, 2009, 2010 Honda Odyssey

16400-5J6-A01 J37 Throttle Body From:

• 2016, 2017, 2018 Acura MDX

• 2016, 2017, 2018 Honda Pilot

• 2017, 2018 Honda Ridgeline

HON-17100-RRB-A00 RBC Intake Manifold From:

• 2006, 2007, 2008, 2009, 2010, 2011 Honda Civic Si
