Part Number: D-SU-10-RG

Notes: Fits both 15+ Subaru WRX 2.0L & STI 2.5L

Details:

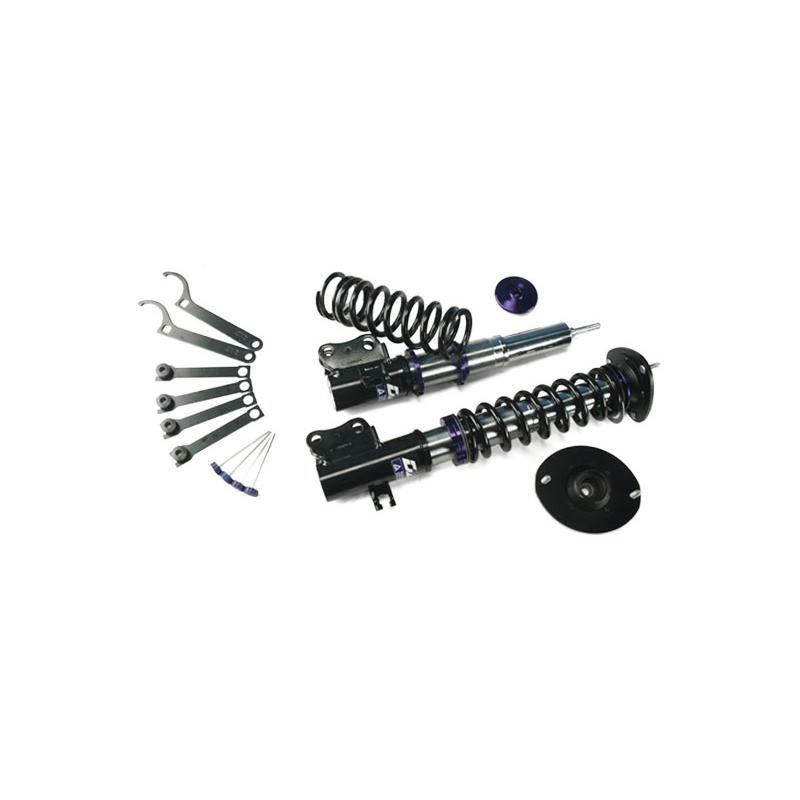

D2 Racing RALLY Gravel suspension kits offer steel mounts, elongated spring and stroke with matched dampening properties to compensate for the rigors of off-road rally competition. Additional features include an inverted monotube strut design, 36-way damping adjustment, 55mm piston shock bodies*, and hardened rubber top mounts to reduce noise and improve ride quality.

D2 Rally Gravel coilovers are adjustable +/- 1.25"; from factory ride height.

Key Features:

• This unit is for McPherson-Style suspension and features an inverted tube design. 55mm struts can bear outside strike and uneven roads or bumps.
• The aggressive movement caused by uneven road or bumps are eliminated by the rubber upper mount. It is necessary to use rubber upper mounts to prolong coilovers' lifespan.
• The Rally Gravel coilovers longer spring and stroke absorbs the harsh conditions caused by uneven road or bumps.
• The ride height adjustment is made of steel materials to enhance safety and durability.
• 36 different damping adjustments.
• The suspension cannot use for rally asphalt or street.
• The ride height can be adjusted and plusmn;30mm from OE ride height.

All Coilovers Include:

• Pillow ball mounts included w/ camber plates *Select Applications*
• Telflon-coated threads
• Flawless CNC finish
• 2 Keys for adjusting ride height
• Carefully matched spring and damper rates
• Custom spring rates (3.5, 5, 7, 9, 11, 13, 15, 18, and 22 kg/mm) available at an additional charge.
