PRL Titanium Turbocharger Inlet Pipe Upgrade Kit 16+ Honda Civic 1.5T
Part Number: PRL-HC10-INT-TIP
Description: Titanium Turbocharger Inlet Pipe Upgrade Kit
Fitment: 16+ Honda Civic 1.5T all Trims
Details:
Fitment Notes:
FITS ALL 2016-2021 HONDA CIVIC 1.5L TURBO MODELS INCLUDING SI & NON-SI, RHD, INTERNATIONAL MODELS, ETC
FITS FACTORY AND FACTORY REPLACEMENT TURBOCHARGER UPGRADES
PAIR WITH OUR RACE MAF HOUSING INTAKE SYSTEMS FOR OPTIMAL PERFORMANCE
ONLY COMPATIBLE WITH PRL MOTORSPORTS COBRA COLD AIR INTAKE SYSTEM OR PRL MOTORSPORTS SHORT RAM INTAKE SYSTEM
Technical Notes:

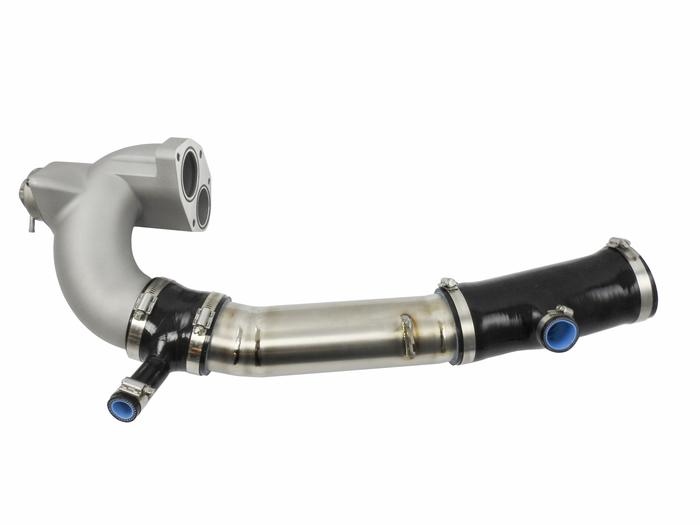

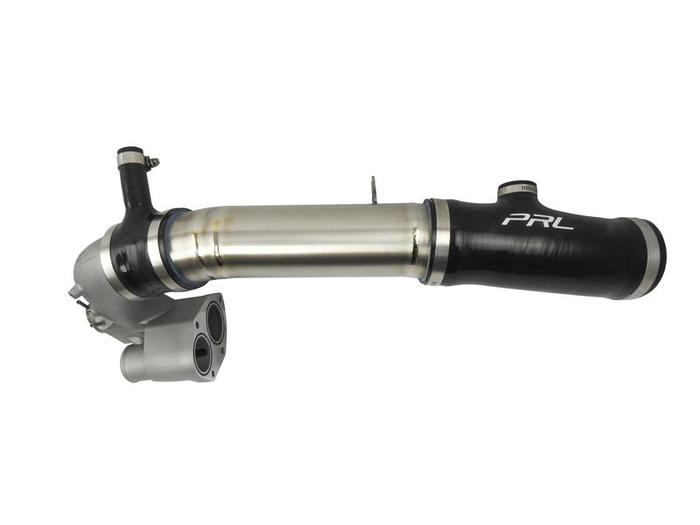

The PRL Motorsports Titanium Turbocharger Inlet Pipe Kit for the L15B7 is a direct bolt-on upgrade that eliminates airflow restriction before the turbocharger, allowing the turbocharger to operate more efficiently. Thin-wall Titanium keeps helps reduce heat-soak. Our design utilizes a cast aluminum inlet piece to allow smooth transition from the gasket-matched 50mm ID compressor inlet to a 76.2mm OD / 74mm ID outlet throughout the Titanium crossover pipe. The compressor outlet diameter is increased to 45mm from the factory's 38mm diameter. This kit was designed to compliment Honda's 1.5L displacement perfectly by providing a significant increase in airflow volume in comparison to the factory inlet pipe, while maintaining velocity. A multi-piece design allows for easier installation and better fitment than a one-piece design.

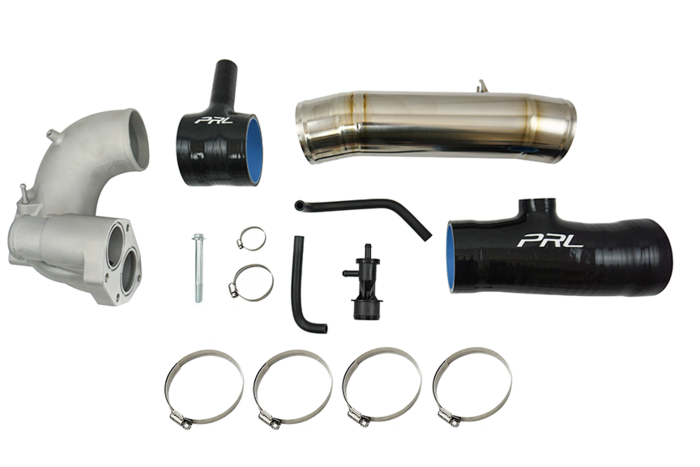

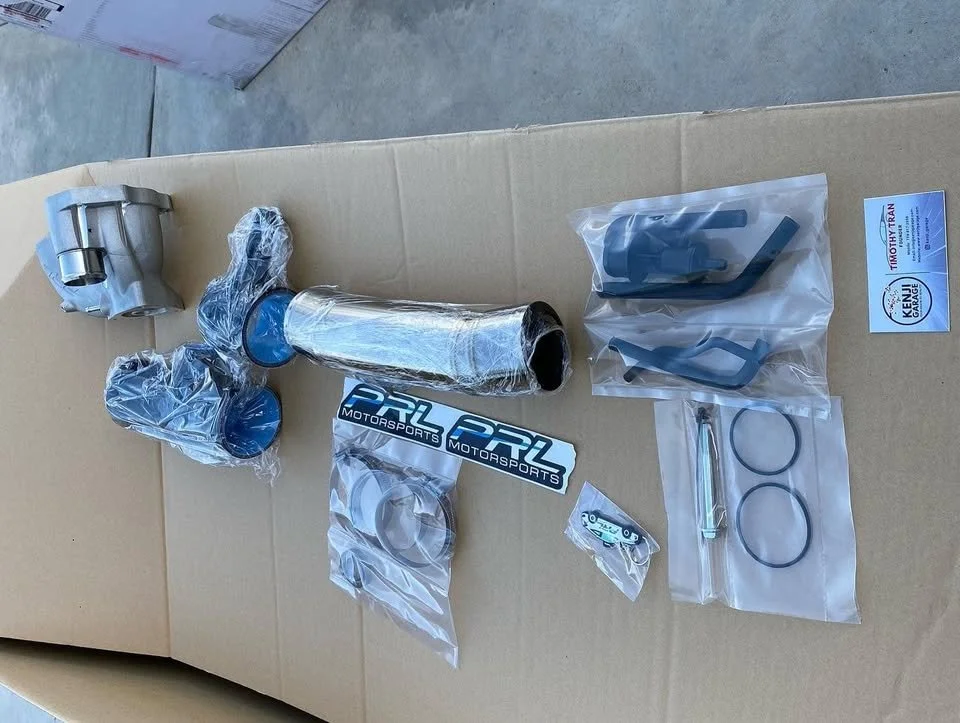

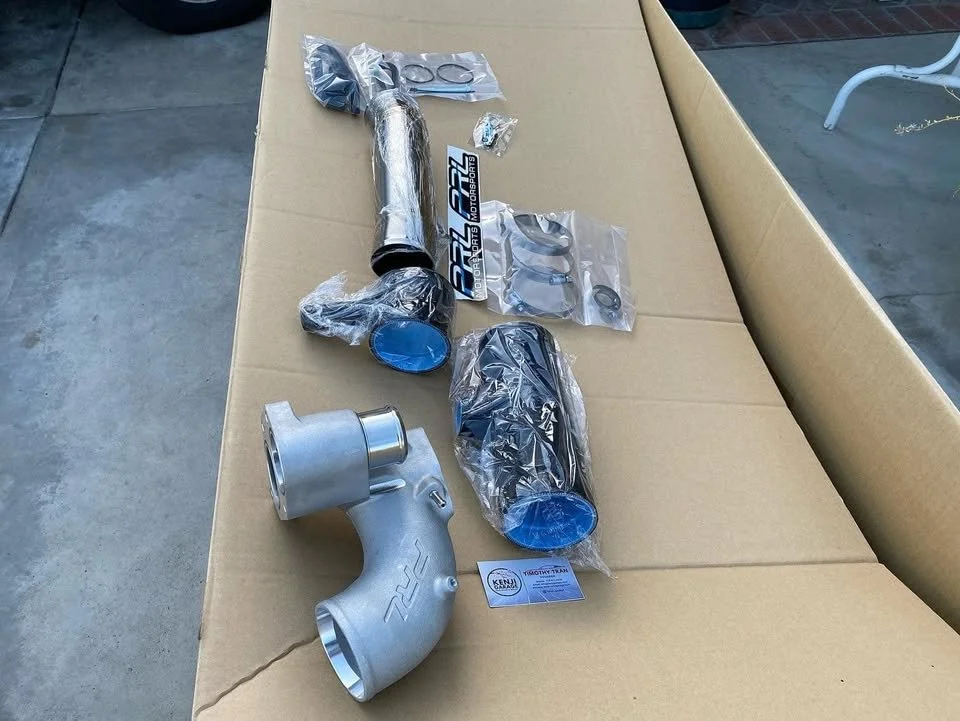

Kit Includes:

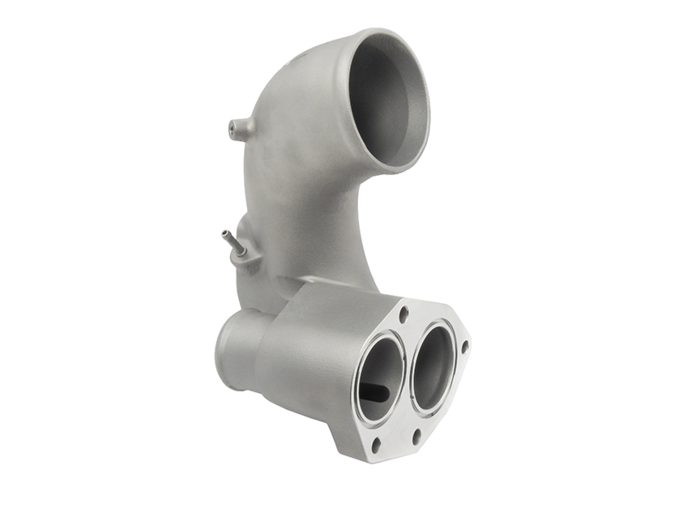

(1) Cast Aluminum Inlet Piece

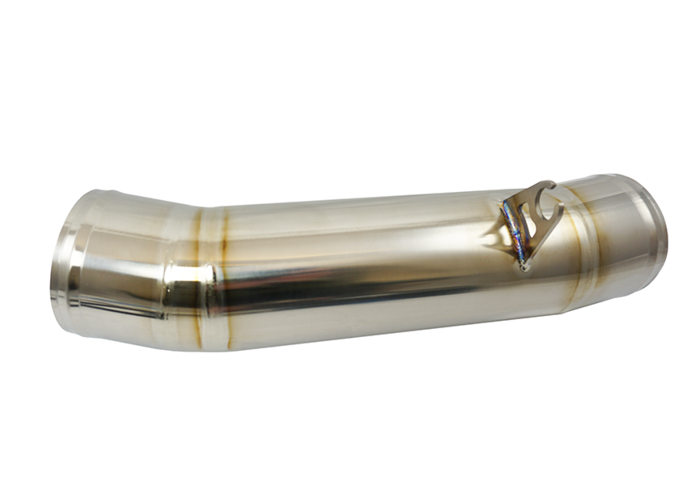

(1) 76mm OD Titanium Inlet Pipe
(2) High-Temp 4-Ply Silicone Couplers
(5) 304 Stainless Steel Interlocking Worm Clamps
(4) Vacuum Hoses
(1) Injection Molded Evap Purge Fitting
(2) Buna O-Rings
(1) Bolt
(1) Wiring Harness Tie-Down
