Part Number: 20-0752

Description: Radium Engineering Toyota MK5 Supra Fuel Filter Mount

Fitment: 20+ Toyota Supra 3.0T

Details:

Hardware for installing a Radium Engineering fuel filter in the MK5 Supra. The upper half of the billet aluminum clamp secures to OEM threaded studs using the provided flange nuts. These studs are on the opposing side of the plastic undertray just to the left of the transmission.

The lower half of the billet aluminum clamp secures the filter using stainless steel bolts.

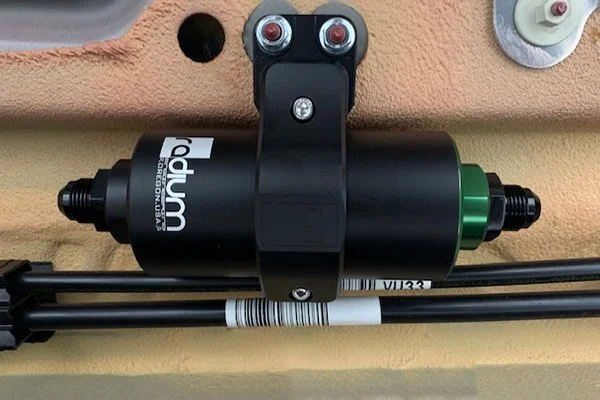

The picture above shows the Fuel Filter and 10AN ORB Fittings (both sold separately).
FEATURES
-Mounts to OEM Threaded Studs
-No Permanent Modifications Required
-Billet Anodized Aluminum Clamps
-Clamp Diameter: 60mm (2.36")
-Stainless Steel Bolts
NOTES
1. The filter is not included in the mount kit, but can be selected above.

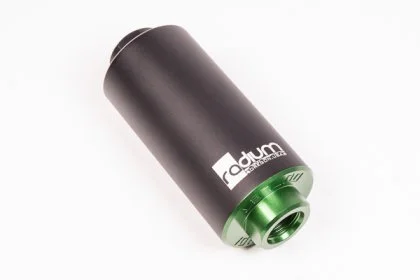

2. For information on Radium fuel filters, please see THIS PRODUCT PAGE
3. Aftermarket fuel lines and fittings will need to be configured separately.
4. This clamp will also work with an external Bosch 0 580 254 044 fuel pump.
