Part Number: PRL-HA10-IC

Description: Intercooler Upgrade

Details:

Fits 2021+ TLX 2.0T with Minor Modification REQUIRES INTERCOOLER INSTALL KIT
Fits 2021+ RDX 2.0T with Minor Modification REQUIRES INTERCOOLER INSTALL KIT
Fits 2019-2020 Acura RDX 2.0T with Minor Modification
Fits all 2018+ Accord 2.0T & 1.5T
Fits all variant models including 10AT, 6MT, RHD, International Models, Etc.

Overview

INTERCOOLER INSTALL GUIDE

Important Notes:

• NO ECU CALIBRATION REQUIRED

• THIS REQUIRES MODIFICATION OF THE BUMPER BEAM FOR PROPER CLEARANCE

Technical Notes:

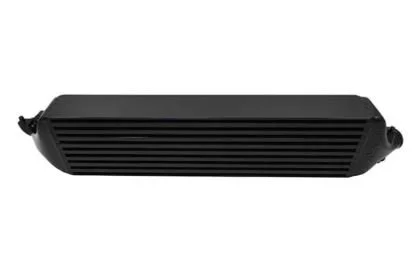

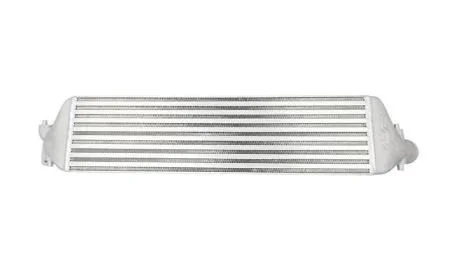

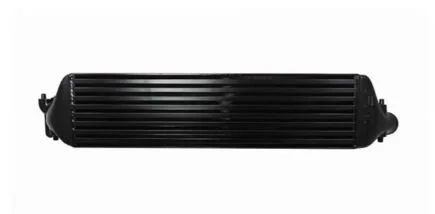

It’s no secret that Honda’s newer turbo platforms are extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 27 x 3.5 x 7.25" 550+ horsepower rated bar-and-plate core. Our intercooler core which increases surface area by 85% and internal flow by 83% to allow optimal cooling and airflow. This intercooler utilizes factory mounting spots with cast aluminum end tanks as well as all factory air ducts/shrouds.

Performance Gains:

• Mid-range & top-end power gains

• Major drop in post charge air temperature at peak

• Increased efficiency & consistency in power delivery

• Increased engine safety

Kit Includes:

• (1) Intercooler Assembly

• (1) Cardboard Stencil w/ “PRL” Logo

• (1) Buna O-Ring

• (1) 304 Stainless Worm Clamp
