Part Number: PRL-HC10-PIK

Description: PRL Port Injection Kit

Fitment: 22+ Honda Civic / 23+ Acura Integra 1.5T

Details:

Fits all 2023+ Acura Integra 1.5T
Fits all 2022+ Honda Civic 1.5T
Fits all 2016-2021 Honda Civic 1.5T
Fits all 2017-2022 Honda CR-V
Fits all 2018+ Honda Accord 1.5T
Fits all variant models including Si, 6MT, RHD, International Models, Etc.

Overview

Technical Notes:

Our port injection kit for the 1.5L Turbo L15B Honda Accord / Civic / CR-V & More permits the use of port injectors for additional fueling on high-powered engines by installing between the intake manifold and cylinder head. The port injectors are placed at a specific angle for proper fuel atomization. Please note that this does NOT replace the factory direct injection system.

• Users are responsible for sourcing an injector controller, wiring, fittings, fuel hose, etc.

• Designed for use with Radium Engineering Fuel Damper (or similar)

• Due to the thickness of the Port Injection Kit intake manifold adapter plate, a custom or additional coupler hose is needed to connect the charge pipe to the throttle body. We are currently working on a solution for this as well.

• Designed around industry standard Bosch EV14 style injectors (48mm Height), which is commonly used by brands like Injector Dynamics, Deatschwerks, Fuel Injector Clinic, Fuel Injector Development, etc.

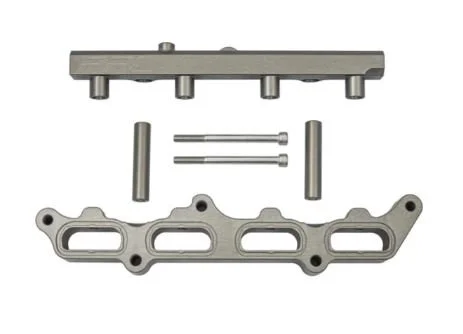

Kit Includes:

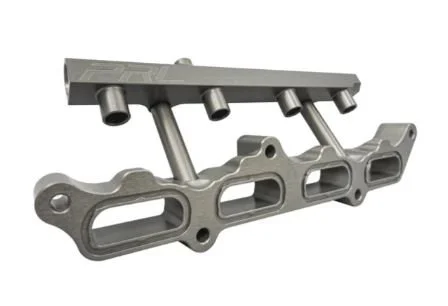

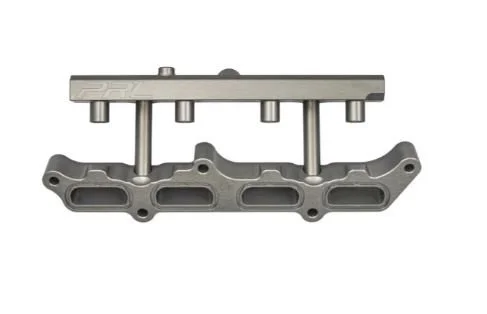

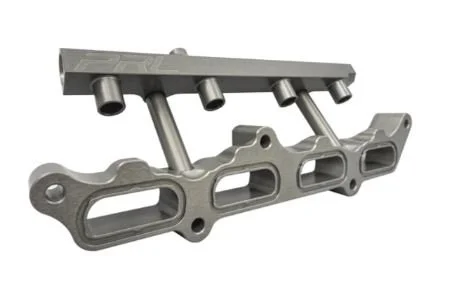

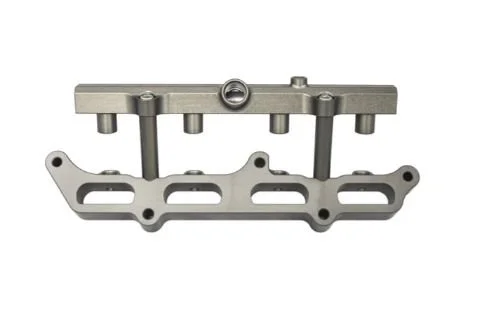

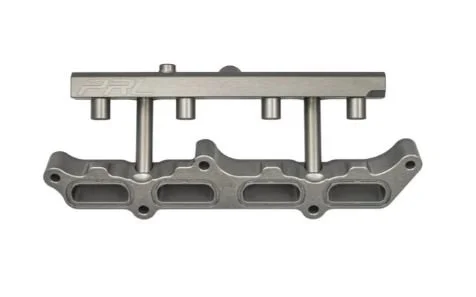

• Anodized billet 6061 intake manifold adapter plate w/ injector ports

• Anodized billet 6061 fuel rail w/ (3) ports machined for -8AN ORB female threads & (1) port for 1/8" NPT female threads

• Anodized stand-offs

• All stainless hardware required for install

• 1/8" NPT sealed pipe plug

• (Optional injectors)
