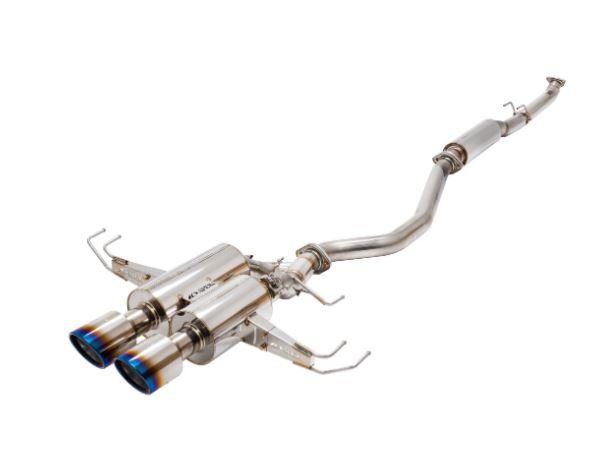

Apexi N1 Evo Extreme Catback 23+ Acura Integra Type S DE5
Part Number: 164-KH04 (w/o Front Pipe)
Description: Apexi N1 Evo Extreme Catback
Fitment: 23+ Acura Integra Type S DE5
Details:
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results.
Piping Diameter: 75mm piping to 75mm (valve side) and 61mm (non-valve side)

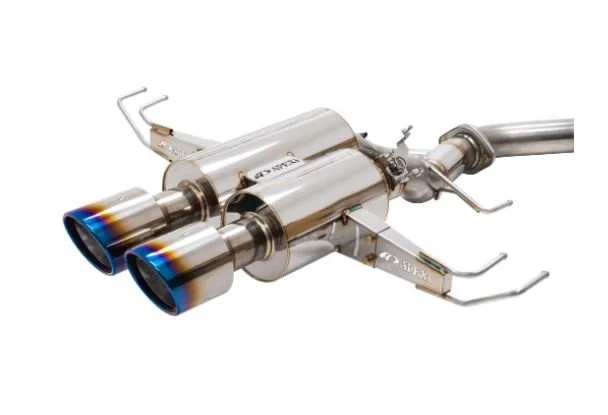

Tip Diameter: 123mm. x 2
Weight Data: 164-KH04 (N1-X): 43.70 lbs (Stock: 47.51 lbs)
Notes:
***Optional Frontpipe Sold Separately (Part No. 145-H003)

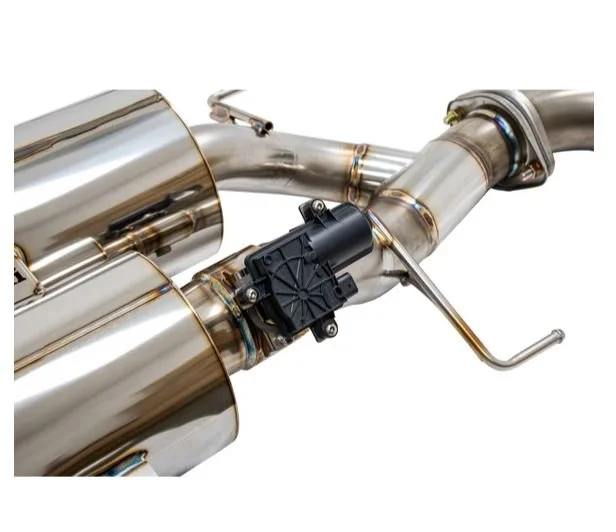

Before completing the installation of the exhaust system with the factory OEM Valve Motor System, follow these steps:
Uninstall the OE Valve Motor: Remove the OE Valve motor from the factory exhaust and disconnect it from the harness connected to the vehicle.
Reset the Valve Motor: Prior to mounting the valve motor on the A'PEXi N1-X Exhaust System, ensure to plug the Valve Motor separately to initiate a factory reset position. This process typically takes around 5-10 seconds to automatically rewind to the reset position. Notably, this reset can be performed without the car being turned on.
Reinstall the Valve Motor: Once the Valve Motor has completed its self-reset, remount it onto the bracket and proceed to install both the Valve Motor and the bracket onto the N1-X exhaust system.
Following these steps ensures proper installation and functionality of the exhaust system with the Valve Motor System.
