Part Number: 20-0766

Description: Radium Engineering Toyota G16E-GTS Fuel Rail

Fitment: 23+ Toyota GR Corolla

Notes: Not for sale in California not CARB Legal

Details:

Manufactured with 0.6" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The 2 end ports are 3/4"-16 threaded (8AN ORB). The upper area of the engine is very narrow so the 2 top ports are 9/16"-18 threaded (6AN ORB). Stainless steel mounting tabs (shown) are included for superior strength.

The OEM fuel injectors are compatible with these fuel rails. The machined ports are compatible with 11mm upper injector O-rings, as shown below.

20-0766 only includes the fuel rail and all of the necessary mounting hardware. This is ideal for those wanting to make a custom fuel system. For those of you who want a plug and play to the factory G16E-GTS fuel system add the optional 20-0766-PK Plumbing Kit.

FEATURES
-Anodized surface finish for wear and corrosion resistance
-Lighweight aluminum construction
-Inner bore diameter: 0.6 inch
-Compatible with aftermarket Bosch EV14 fuel injectors
-Can be converted to a pressure regulated return system
-No special tools required for installation
-Fits under the factory engine cover

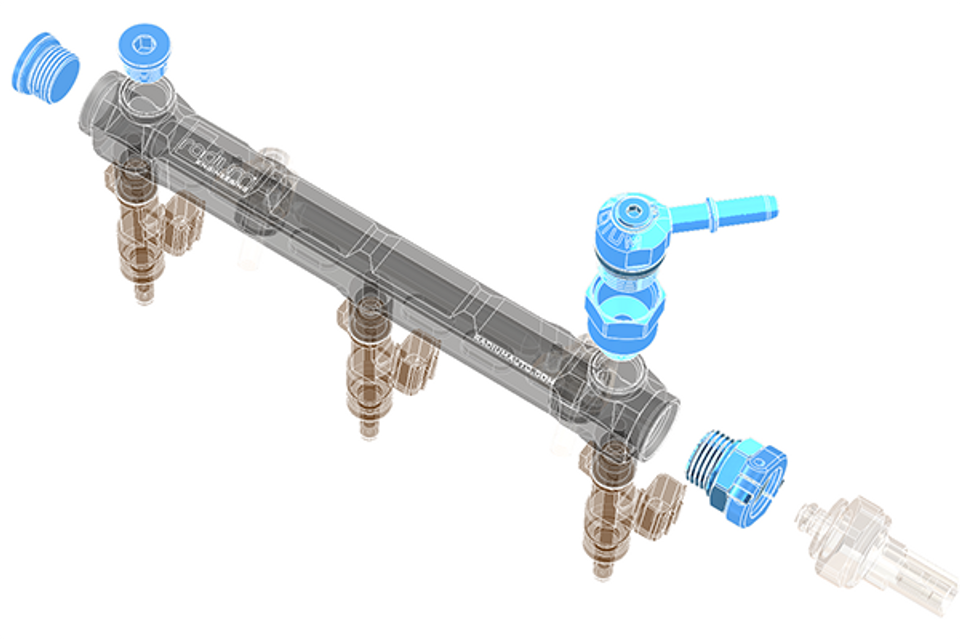

20-0766-PK PLUMBING KIT
When used in conjunction witht the 20-0766 fuel rail, the 20-0766-PK add-on plumbing kit permits a plug and play connection to the factory G16E-GTS fuel system.
