Part Number: BOR-HR-UNV

Description: Bolt On Radiator Bracket Kit

Fitment: 92-00 Honda Civic / 94-01 Acura Integra / 93-97 Honda Del Sol

Details:

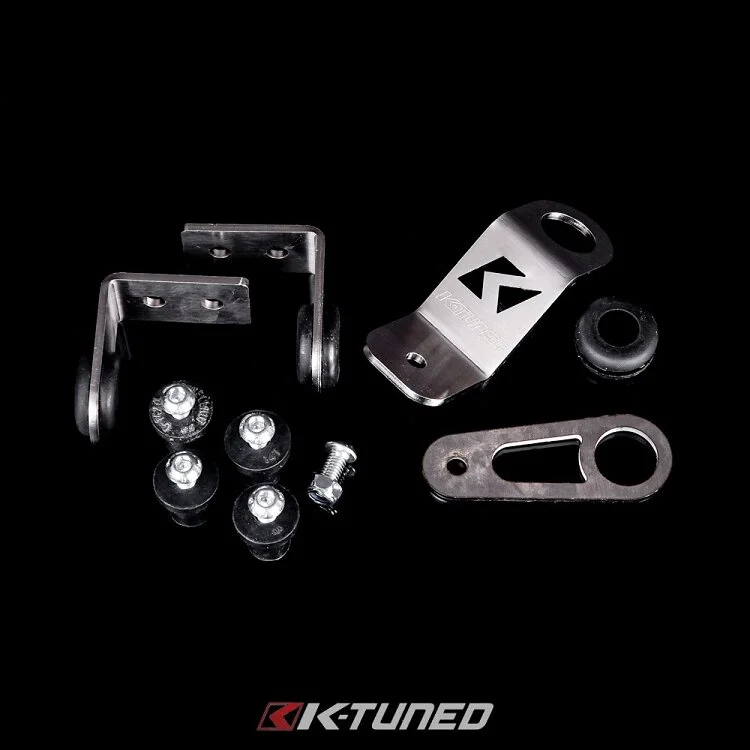

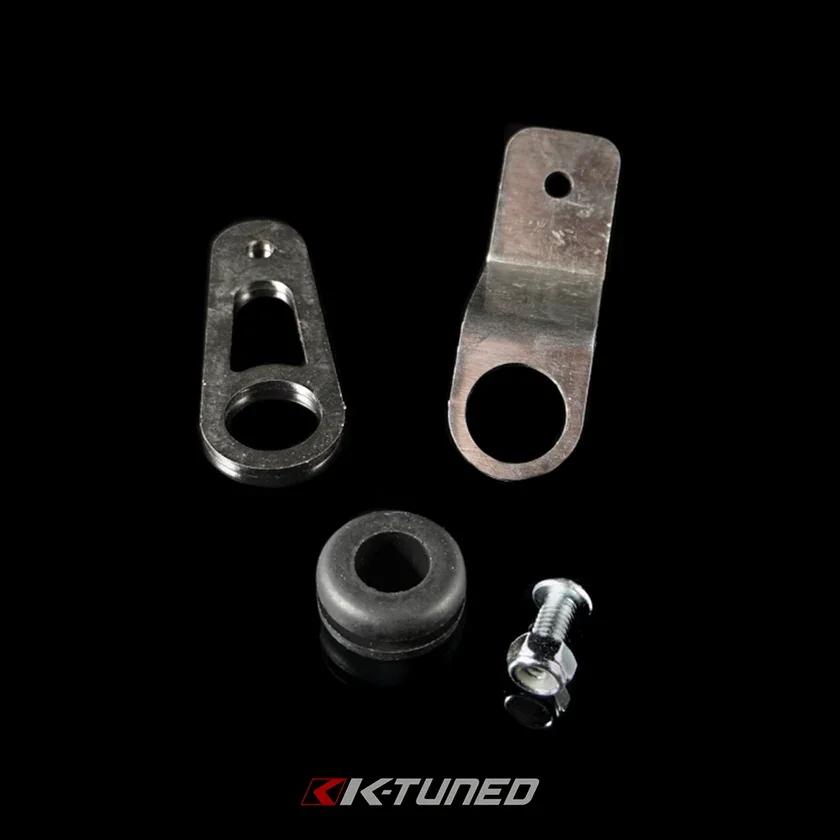

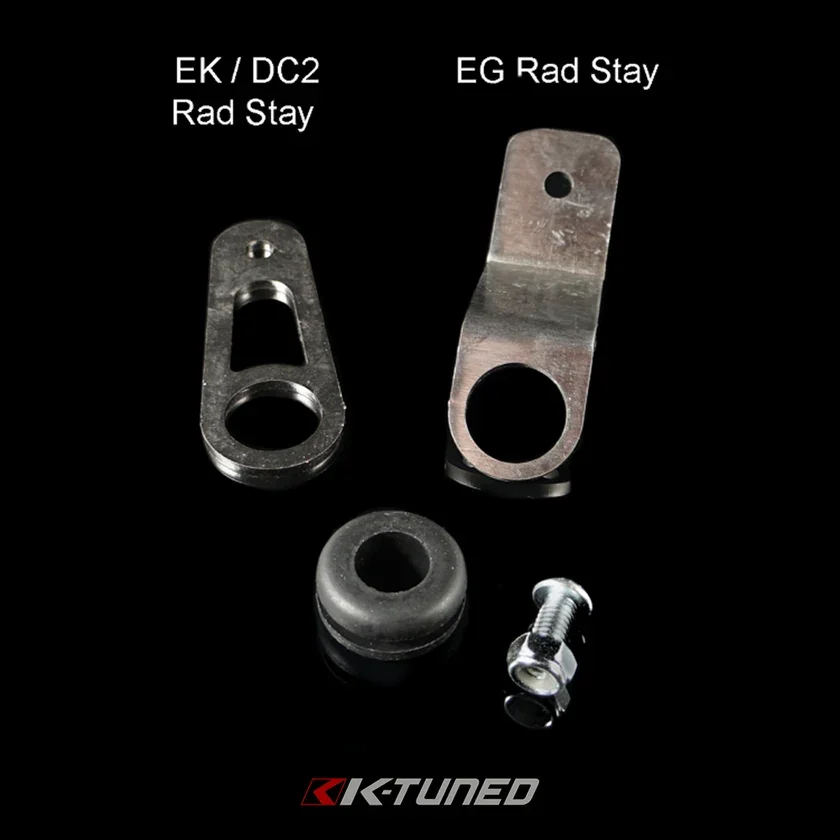

Another K-Tuned innovation. We have designed a direct bolt-on rad bracket system for your K-swapped chassis. Relocating your radiator has never been so easy! These brackets bolt up to the oem upper and lower rad support, allowing you to easily mount your radiator on the driver side of the engine bay. Our universal kit includes 2 different top brackets, one for the EG chassis and one for the EK/DC2 chassis. The kits come complete with zinc plated hardware. The upper rad bracket is powder coated in silver. The lower brackets are stainless steel and use quality urethane grommets. It really doesn’t get any easier…

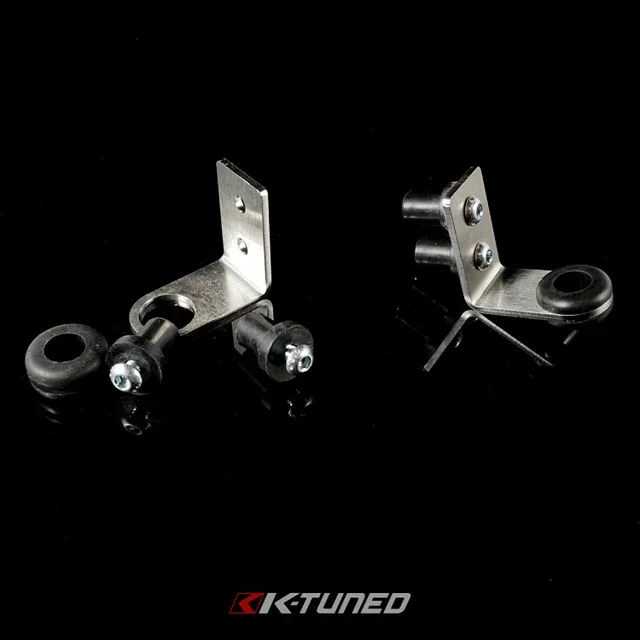

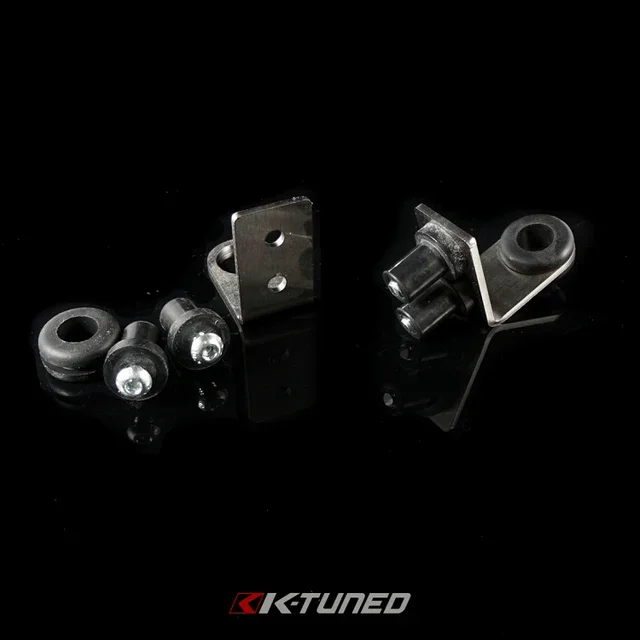

As you can see in the pictures below, the wellnuts slip through a drilled hole in your lower rad support. When the mounting bolt is then tightened down, it mushrooms the well nut at behind creating a secure mounting point for your new rad supports. Simple and effective.
