Part Number:

Select Hanger:
Pumps Not Included

20-0790-00 Fuel Hanger, 94-01 Integra, 92-00 Civic, Walbro GSS342, AEM 50-1200

20-0792-00 Fuel Hanger, 94-01 Integra, 92-00 Civic, Walbro F90000267/274/285

Dual Pump:
Add-On Kit
Pumps Not Included

20-0796-00 Dual Pump Add-On, Walbro GSS342, AEM 50-1200

20-0797-00 Dual Pump Add-On, Walbro F90000267/274/285

Description: Radium Fuel Pump Hanger

Notes: Not for sale in California not CARB Legal

Details:

COMPATIBILITY
94-01 Acura Integra (All models/trims/RHD/LHD)
92-00 Honda Civic (All models/trims/RHD/LHD)

OVERVIEW
This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl to fuel starvation protection.

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.
1. The preinstalled -6AN male fitting permits an aftermarket feed line.
2. The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
3. The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.

There are 2 fittings included for the return port.
1. The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused. NOTE: 96-01 Integra and 96-00 Civic require the OEM return hose to be extended.
2. The -6AN male fitting permits an aftermarket return line.

All fittings are machined low enough to clear the fuel pump acess cover.

FUEL PUMPS
Part numbers 20-0790-00 and 20-0792-00 are configured to be used with 1 aftermarket fuel pump. NOTE: If 2 aftermarket pumps are required, the supplementary "dual pump add-on" (20-0796-00 or 20-0797 listed below) is also required. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.

P/N: 20-0790-00 can be used with the AEM 50-1000, AEM 50-1200, Walbro GSS342, or other pumps with the same physical shape and electrical connector.
P/N: 20-0792-00 can be used with the Walbro 39/50 DCSS pumps including F90000267, F90000274 or F90000285 pumps.

ELECTRICAL
The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

Notes
1. Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
2. It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
3. Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.

FEATURES
-Drop-In Installation
-Anodized Aluminum Construction
-Merged 8AN ORB Female Pump-Out Port
-Fittings for Aftermarket and OEM Lines
-Capable of 2 Pumps with Add-On
-Compatible with Various Pumps
-Included Fuel Pump Filter Sock
-High Current Electrical Hardware
-Stainless Steel Hardware and Clamps
-Gasoline, Methanol, and E85 Compliant

Radium P/N: 20-0790-00 shown above. Radium P/N: 20-0792-00 shown below.

DUAL PUMP ADD-ON
Part numbers 20-0796-00 and 20-0797-00 are add-ons to the fuel pump hanger listed above. NOTE: Part numbers 20-0790-00 or 20-0792-00 must be purchased to use these add-ons.

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult. Furthermore, it is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.

The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.

FUEL PUMPS
Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.

P/N: 20-0796-00 can be used with the AEM 50-1000, AEM 50-1200, Walbro GSS342, or other pumps with the same physical shape and electrical connector.
P/N: 20-0797-00 can be used with the Walbro 39/50 DCSS pumps including F90000267, F90000274 or F90000285 pumps.

FEATURES
-Gasoline, Methanol, and E85 Compliant
-Compatible with Various Pumps
-Included Fuel Pump Filter Sock
-Plug and Play Installation
-Bolt-On Stainless Steel Pump Bracket
-Polished Installation Tool

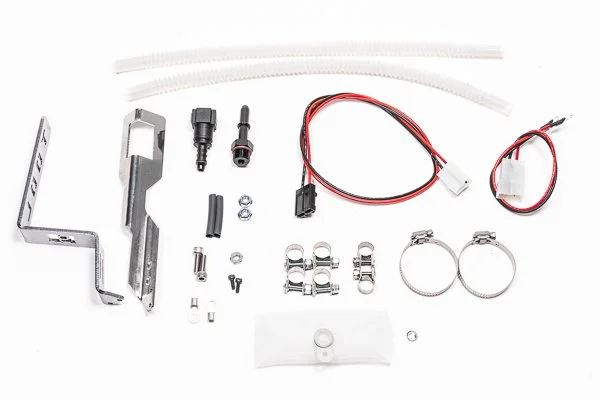

Radium P/N: 20-0796-00 shown above. Radium P/N: 20-0797-00 shown blow.
