Part Number: PLM-SEAT-RAIL-BKT-EG-SR3 (92-95 Honda Civic / 94-01 Acura Integra) / PLM-SEAT-RAIL-BKT-EK-SR3 (96-00 Honda Civic)

Description: PLM Seat Rail Bracket For Recaro LS LX SR2 SR3 SR4 SRD

Details:

Sold as a pair, complete set to fit left & right seats. Universal model is sold in singles.

PLM Seat Rail Bracket is the perfect design solution for mounting your factory Recaro seats!

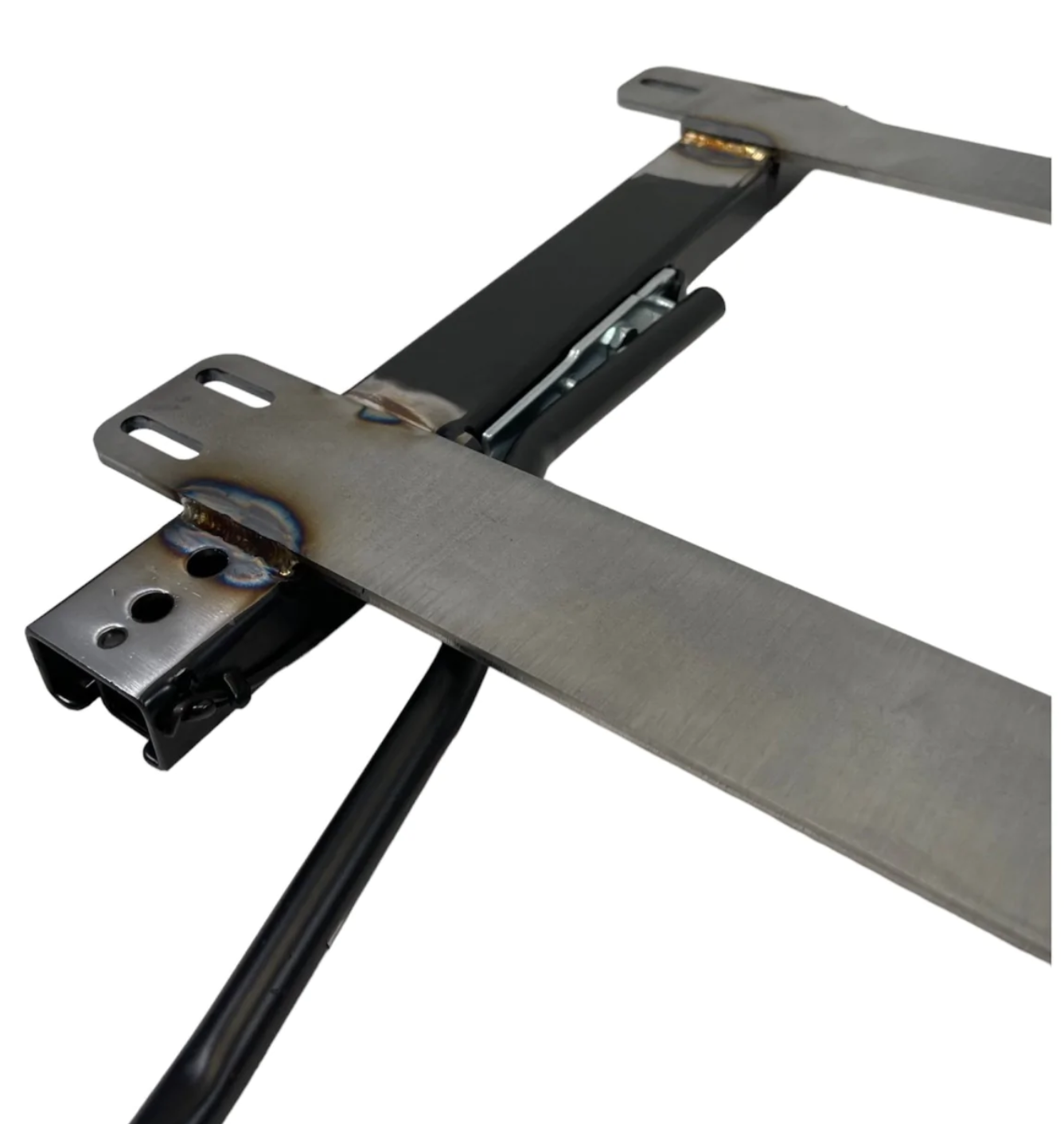

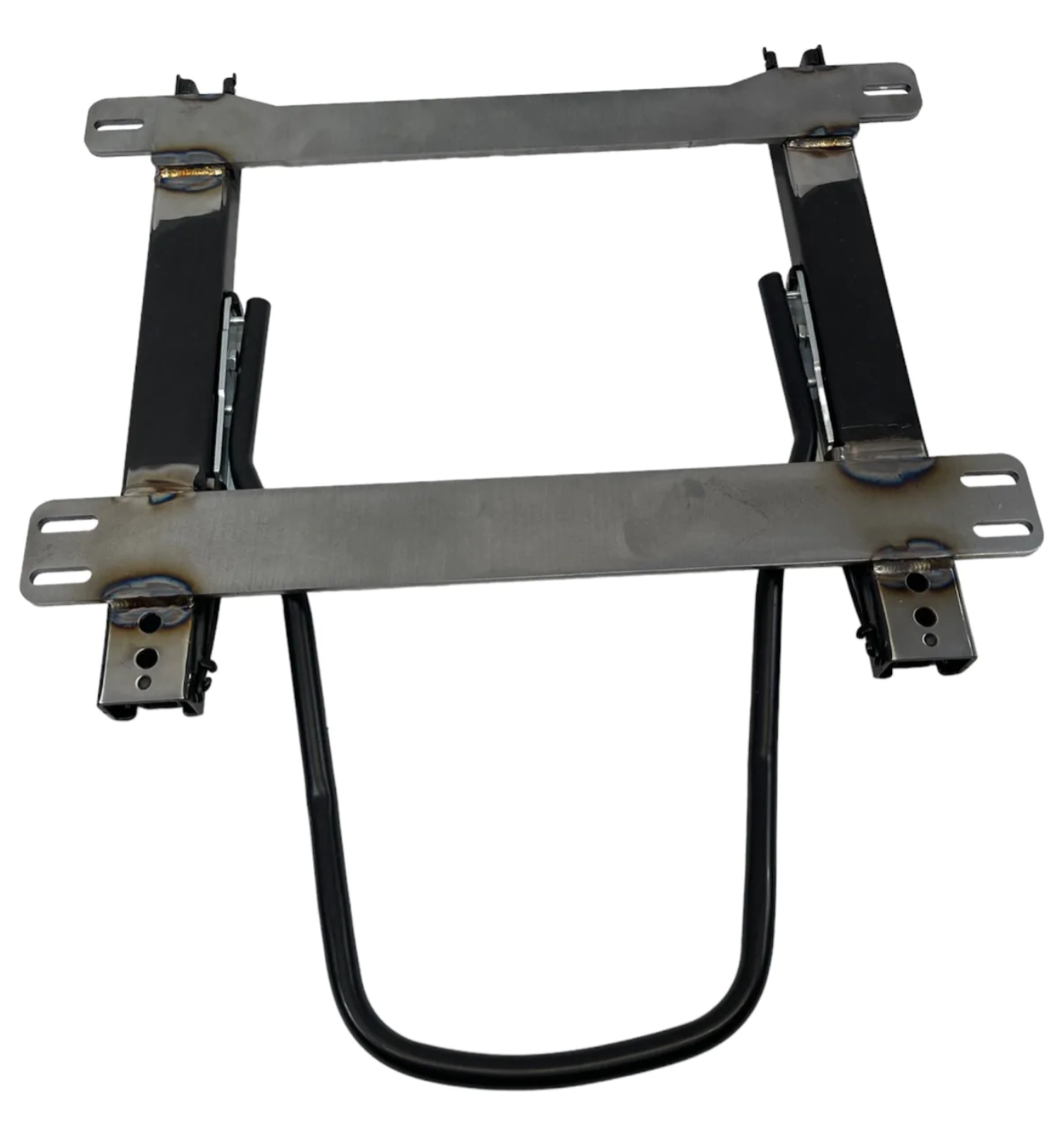

We start with a precise measurement of the factory Recaro seats, CAD designed 2 steel plates with pre-drilled holes, CNC laser cut the steel plates, and then welded on our seat sliders so it has the perfect alignment for Recaro seats without any drilling or modification.

The sliders can then be attached (hardware bolts & nuts) to the seat base bracket using standard hardware bolts and nuts. With multiple holes on our seat base plate, you can adjust the position of the slider to that perfect spot you desire.

• Sold as a set to fit Left & Right seats for vehicle specific models.

• "Universal" model requires vehicle-specific seat base bracket. Universal model is sold as a single seat. If you need it for both driver and passenger, please select 2 quantity.

Features:

• Final assembly and welded in the USA

• CAD designed and CNC machined base bracket and plates

• Double locking seat sliders

• High quality carbon steel of at least 1/8" thick

• TIG & MIG welded by hand

• Welded base plates to sliders - will not get loose over time

• High strength steel - will not bend

• Sliders to seat base bracket are fasten by hardware

Only to fit the following bottom mount seats:

• Recaro SRD

• Recaro SR2 SR3 SR4 SR5

• Recaro LS & LX

• Type R Recaro

The holes dimension:

• Front to back is 9 1/4" and 10 1/4" on the outer holes.

• Side to side is 15 3/4 to 16 1/4". Holes are slotted, width adjustable.
