Part Number: SRI2000

Description: Short Ram Intake

Fitment: 17-21 Kia Stinger 2.0T

Details:

DC Sports intake tubes feature lightweight aluminum alloy construction with a silver powder coated finish that is corrosion resistant. Designed to improve throttle response and increases horsepower and torque. Our Cold Air systems re-locates the air filter outside the engine compartment for cooler air ingestion, providing lower air intake temperatures to the engine.

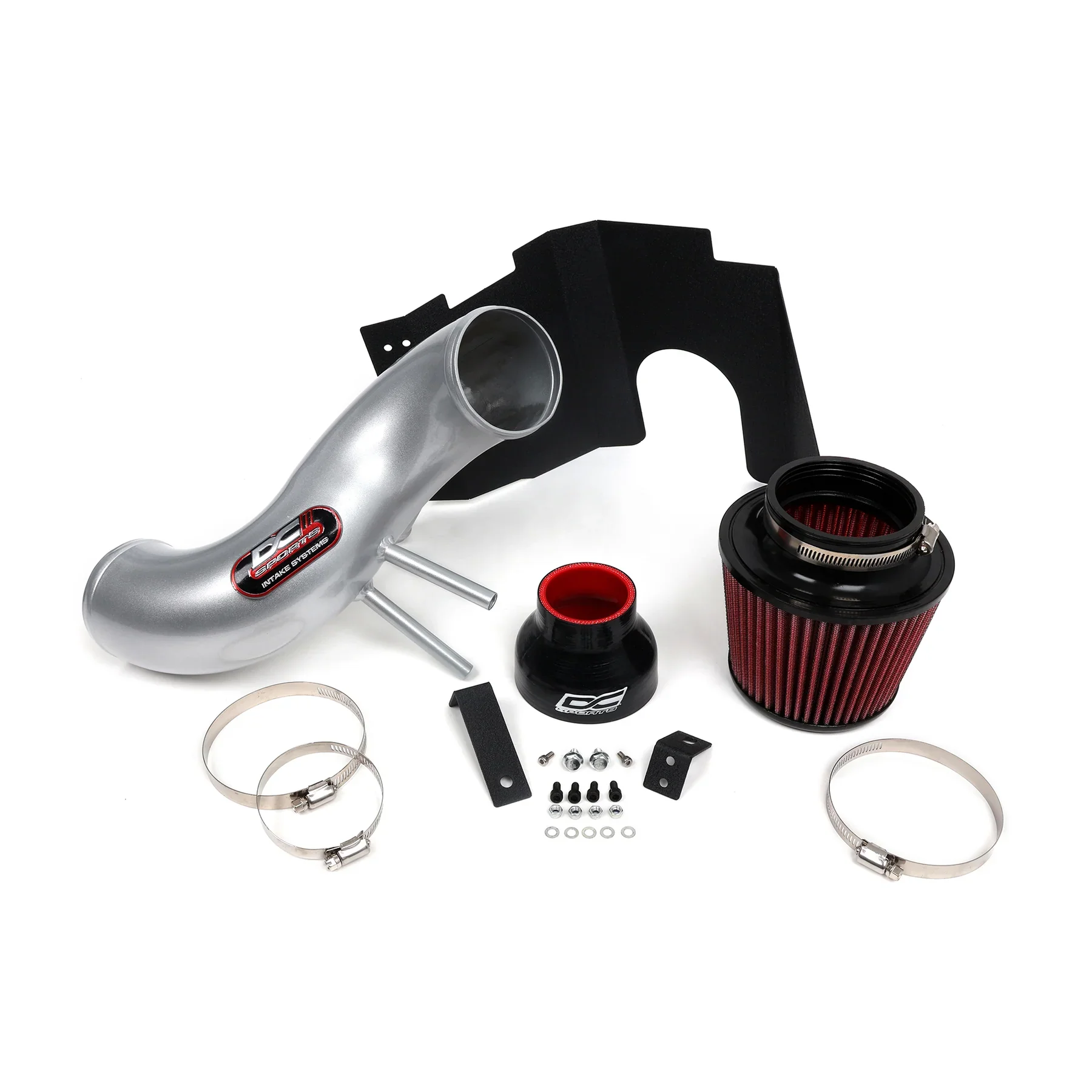

• Direct bolt on easy to install design. Comes with all needed hardware

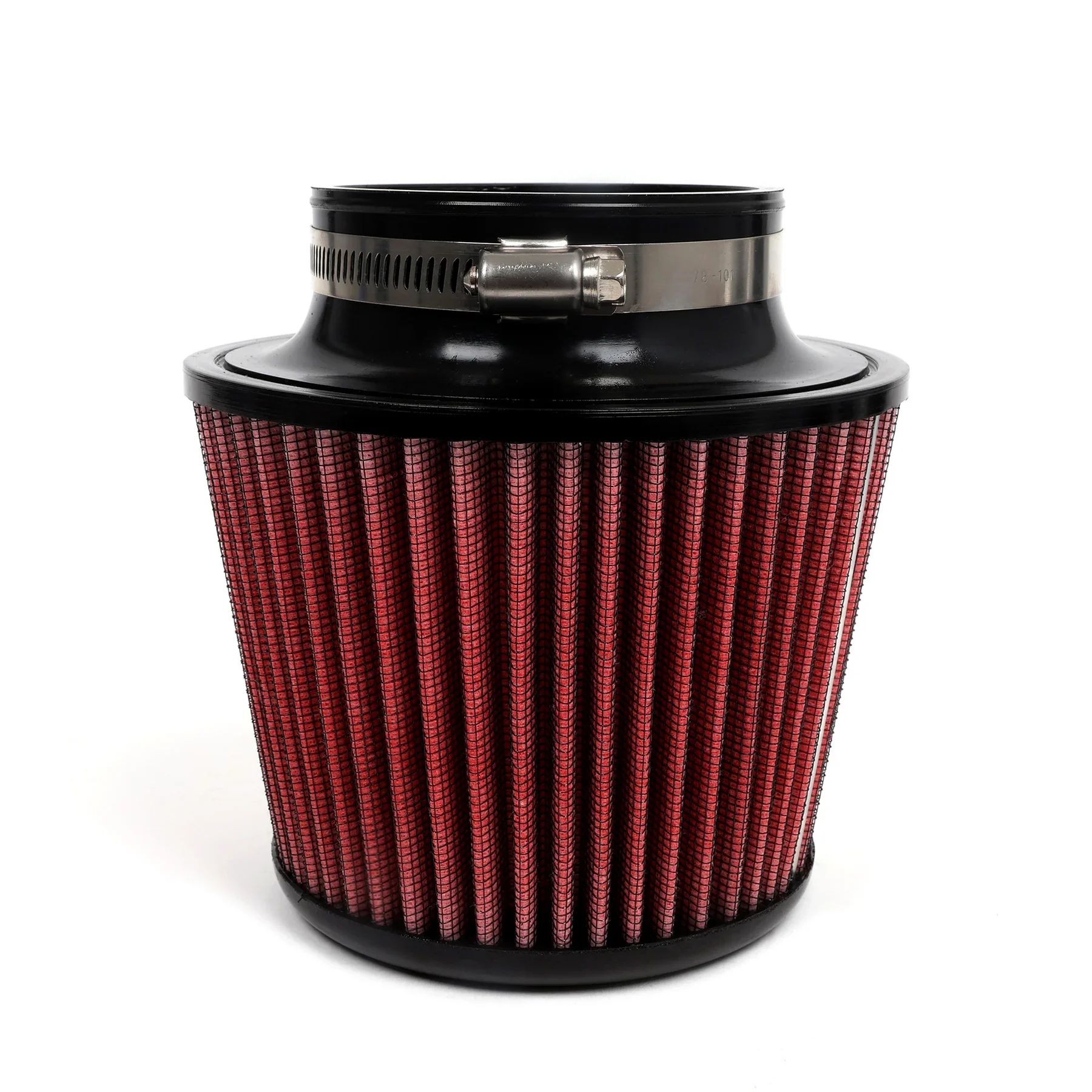

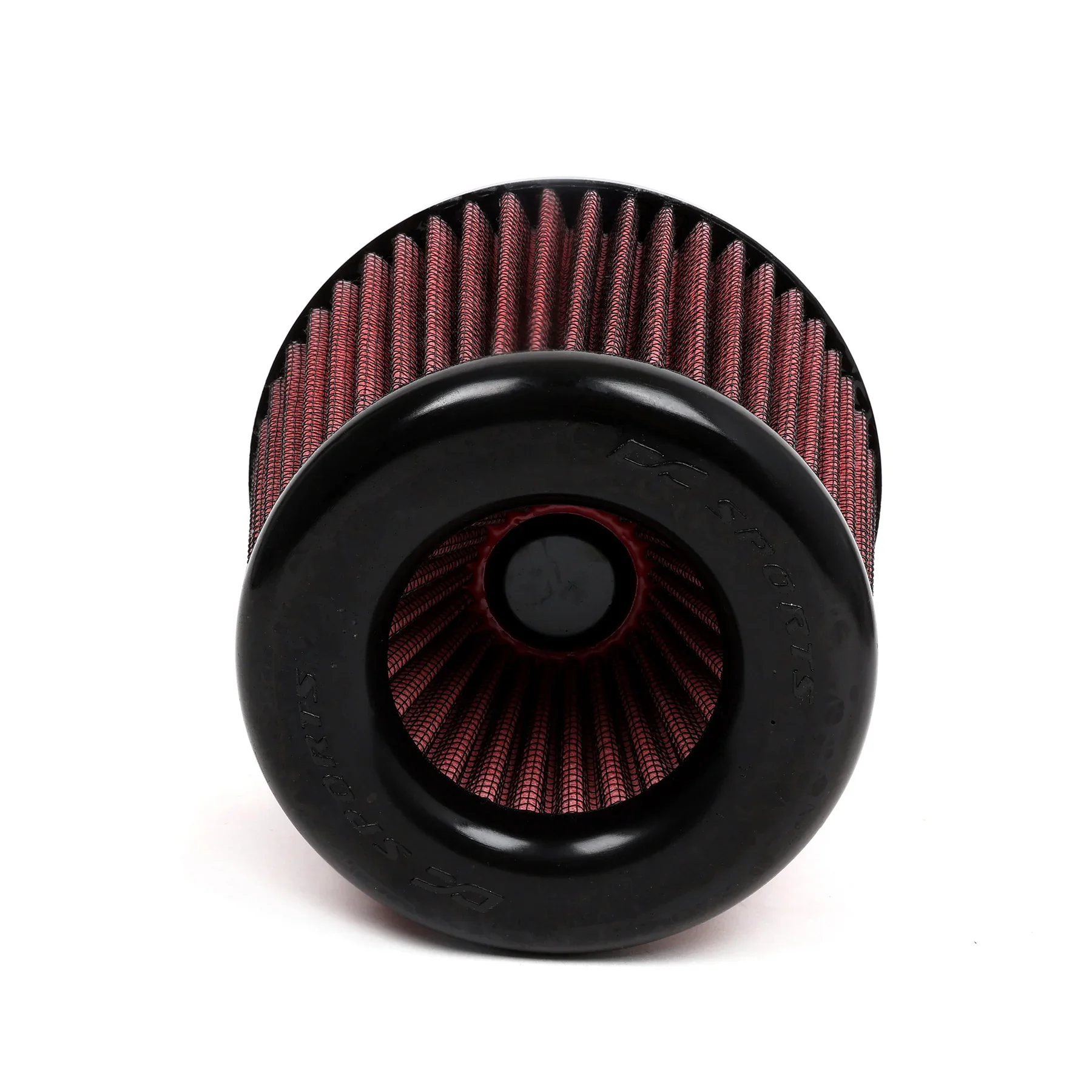

• High Flow Element Filter, Reusable and Washable

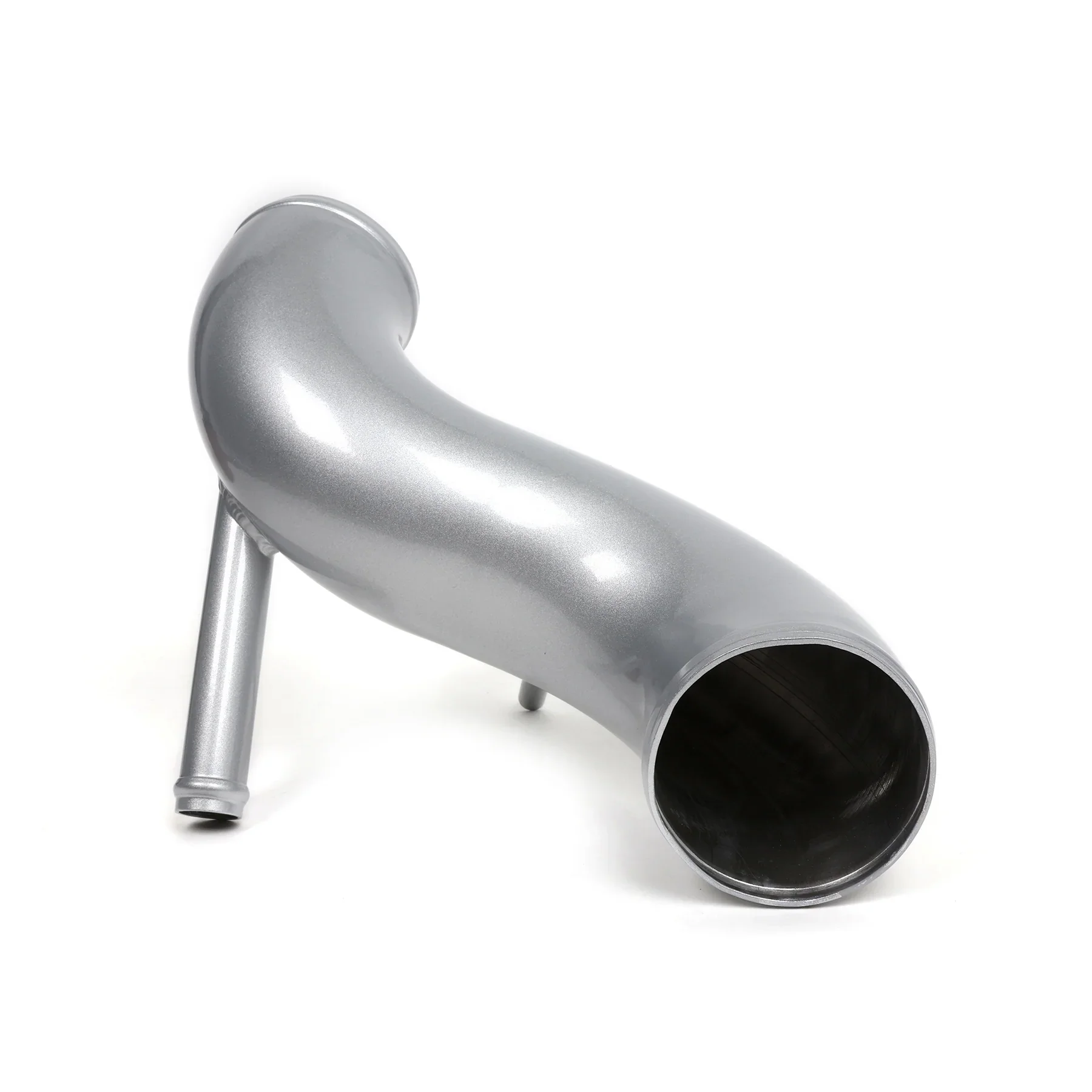

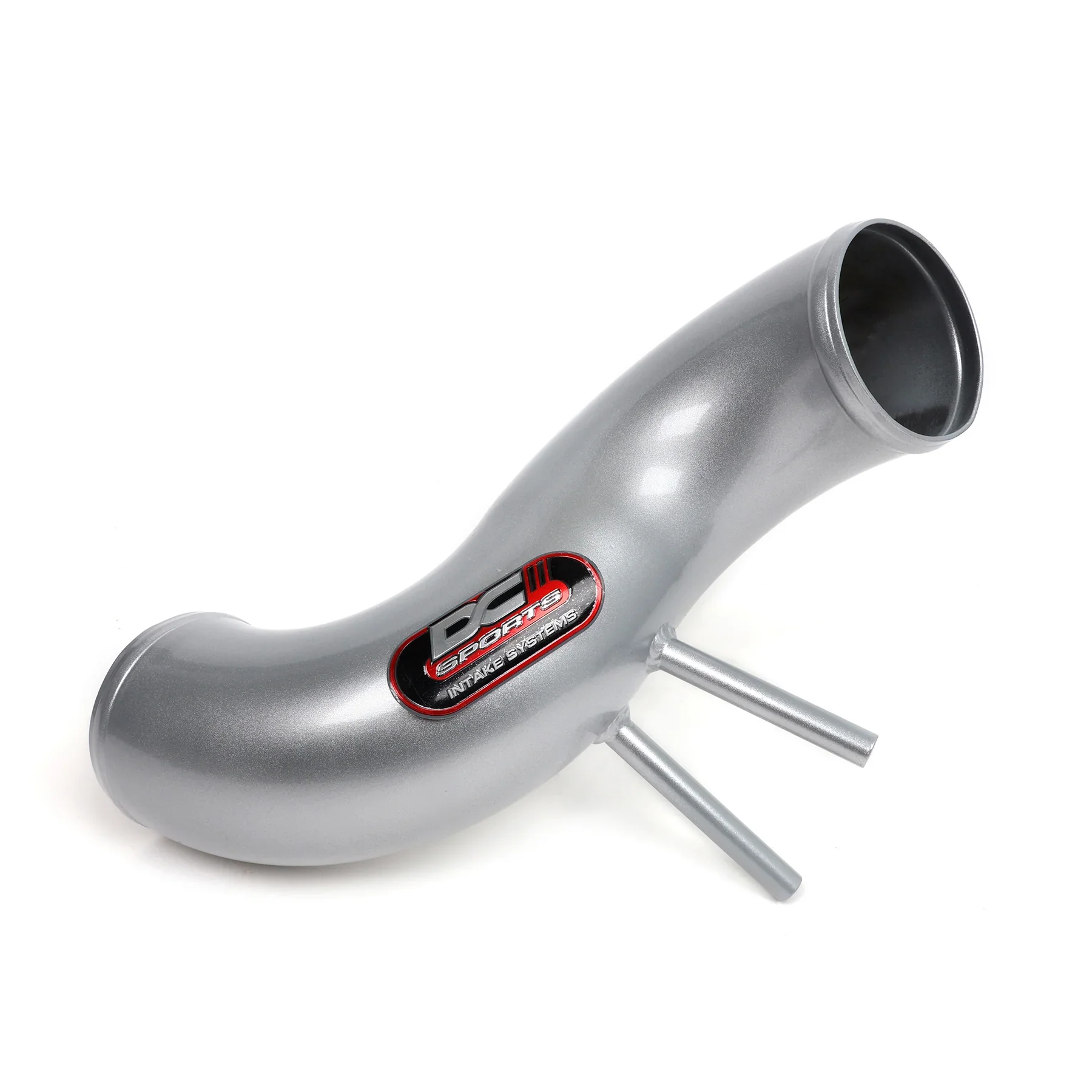

• Aluminum Mandrel Bent Piping

• Corrosion Resistant

• Designed and tested in the US for maximum performance Gains

• C.A.R.B Pending

• 3 Years Warranty

INSTALL GUIDE:

  1. Disconnect battery terminals

2. Remove two (2) 12 mm bolts holding strut bar

3. Remove the three (3) hoses going into the intake tube

4. Loosen clamps that goes from the rubber intake tube to the intake box and the throttle body and gently pull it out.

5. Remove the three (3) 10 mm screws holding the intake box to the car and pull intake box off car.

6. Locate the two (2) 10mm bolts securing the air duct and remove air duct from car.

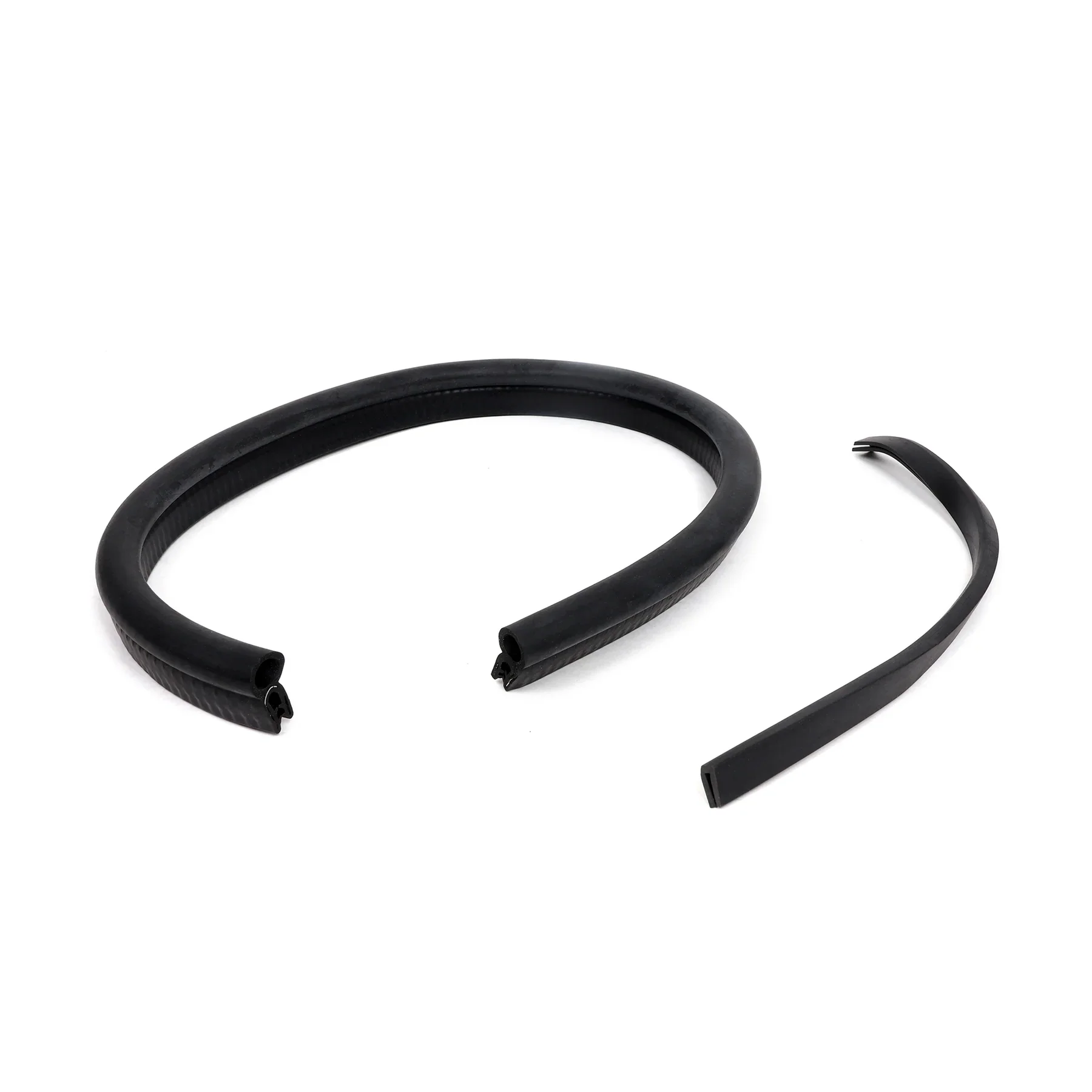

7. Install rubber on heat shield. The thin rubber goes on the bottom of the heat shield while the thick one goes on the top

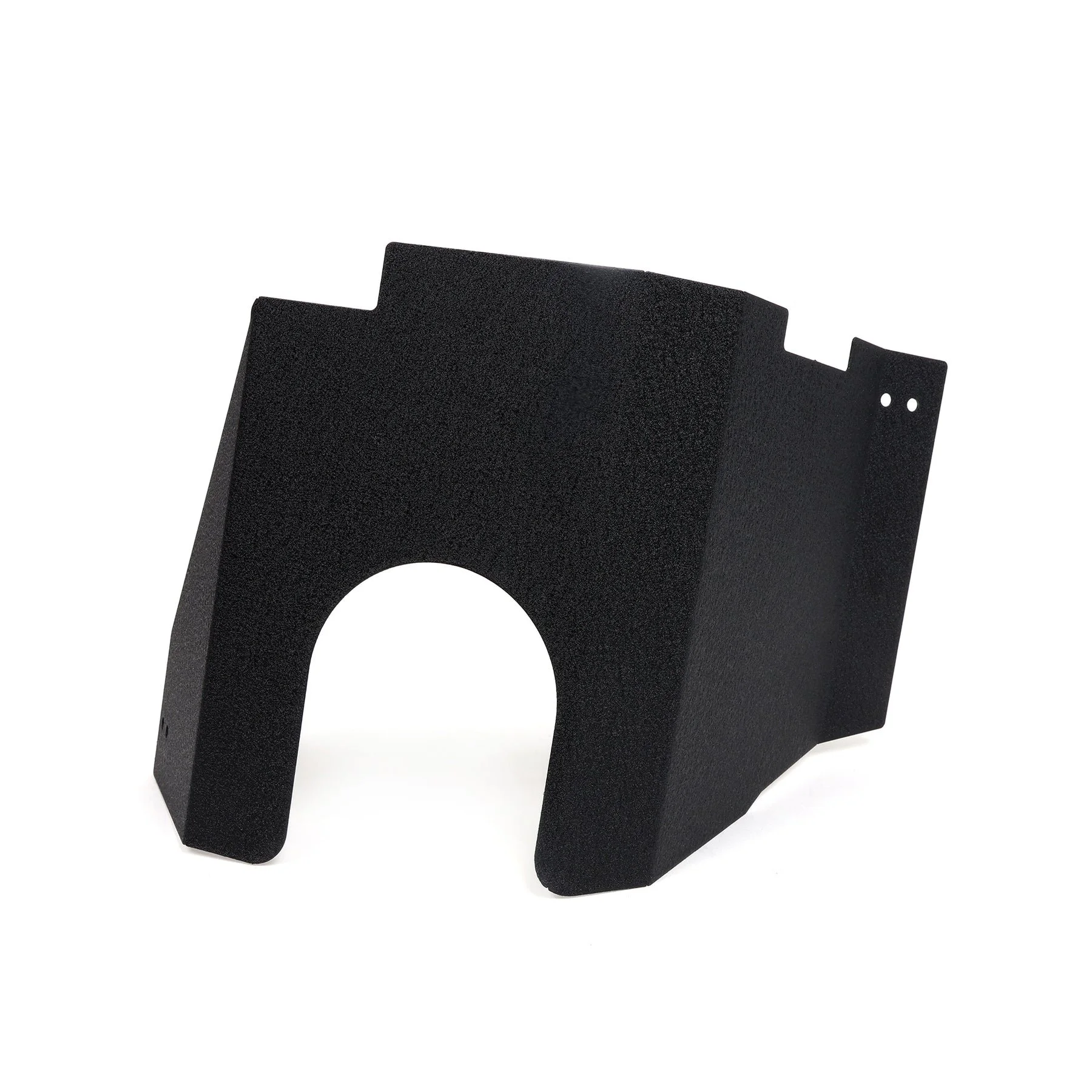

 8. Install heat shield on vehicle. Use two (2) 10 mm screws that you previously removed for this install.

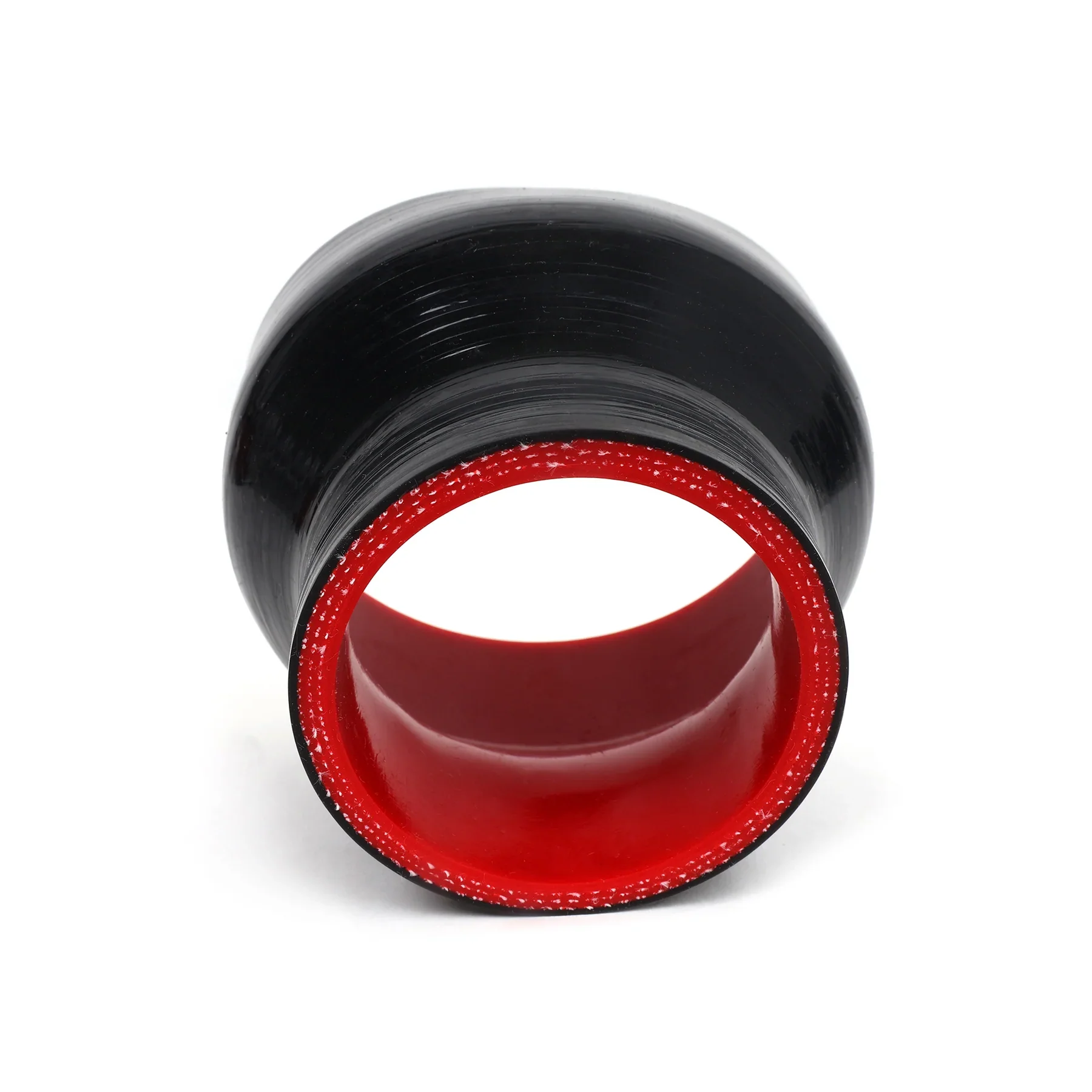

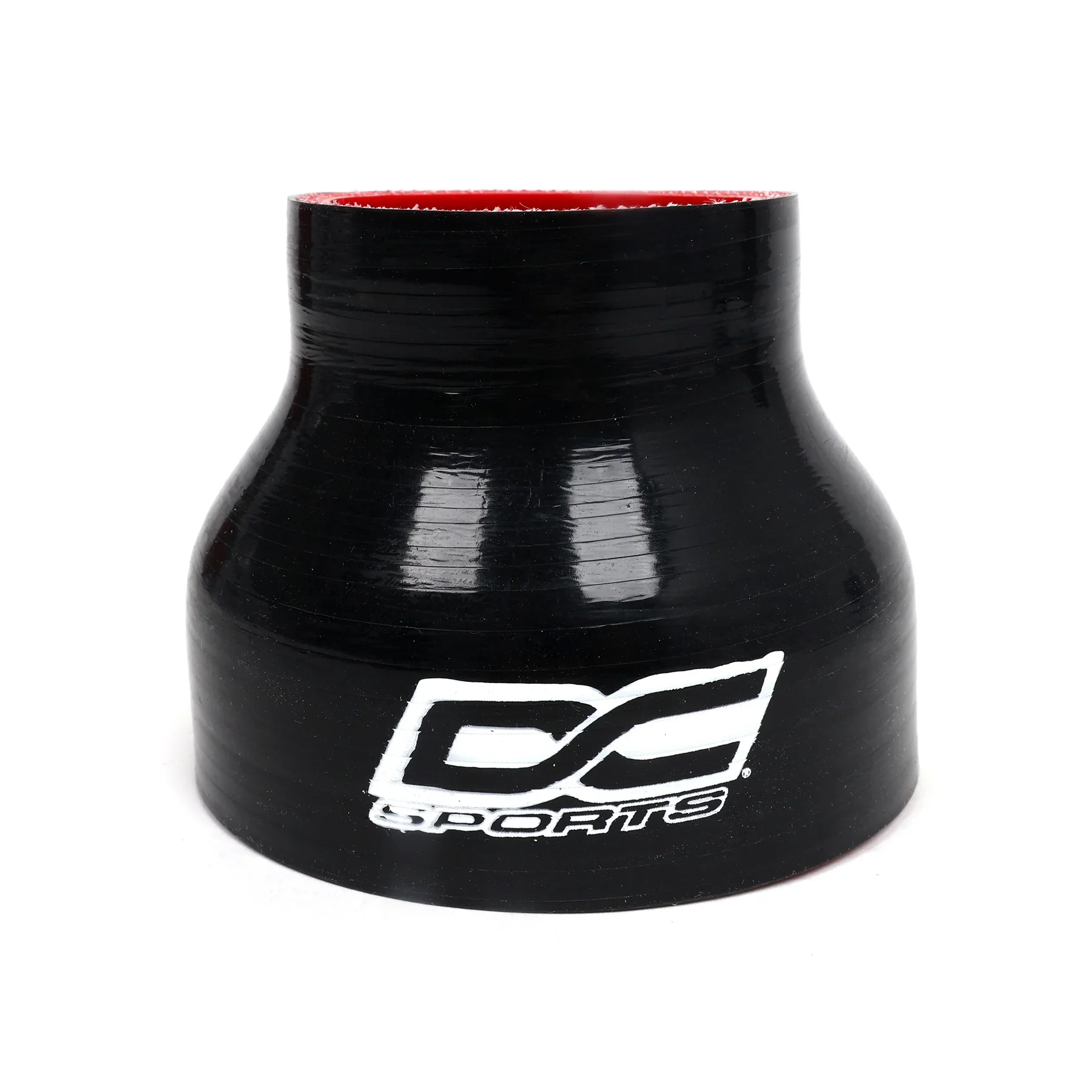

9. Assemble the intake tube by installing the filter kit and the coupler. Use clamps to secure everything

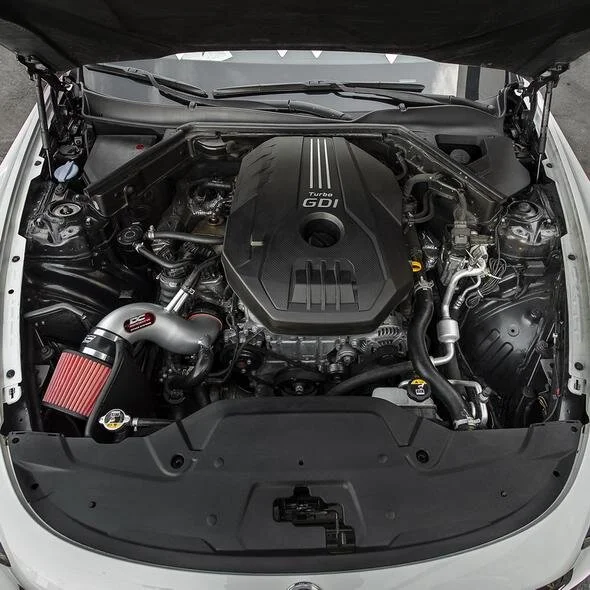

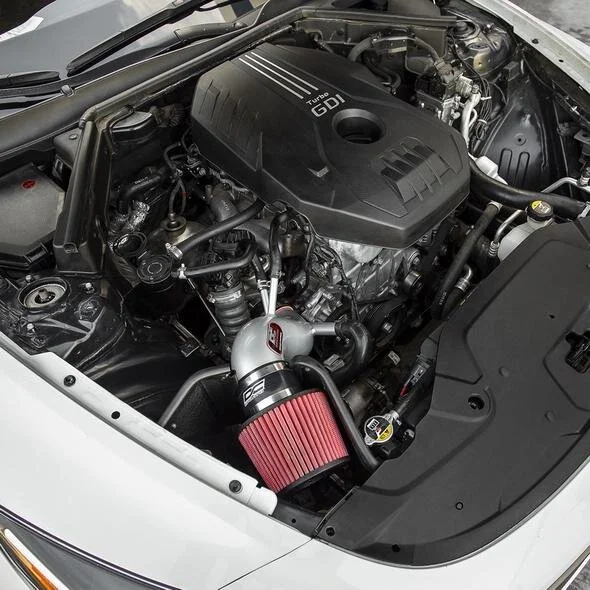

10. Install intake onto car. Tighten down clamp from coupler to throttle body

11. Install the three (3) hoses onto the intake tube. Use the O.E. clamps

12. Install the strut bar back.

13. Double check your work! Make sure that you have no interference issue, clamps and hardware are tight.
