Nissan Skyline Cooling

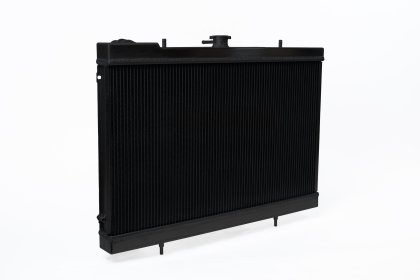

CSF Full Billet Aluminum High-Performance Radiator 89-94 Nissan Skyline R32 RB20DET/RB26DETT

$895.50

Part Number: 7217

Description: CSF R32 Nissan Skyline GT-R / GT-S Full Billet Aluminum High-Performance Radiator - Raw Finish

Core Material: Aluminum

Finish/Color: Raw or Black

Installation Type: Drop-In Fit Installation

Coolant Hose Inlet Connection Type: OE Type Connection

Coolant Hose Outlet Connection Type: OE Type Connection

Core Height: 379.5mm

Core Row Quantity: 2

Core Thickness: 42mm

Core Width: 644.5mm

Down Flow Or Cross Flow Type: Down Flow

Frame Included: No

Grade Type: Performance

Inlet Connector Type: Slip On

Inlet Diameter: 35mm

Inlet Location: Top Right

Internal Engine Oil Cooler: No

Internal Transmission Oil Cooler: No

Mounting Hardware Included: No

Mounting Type: Mounts with OE Hardware

Outlet Connector Type: Slip On

Outlet Diameter: 35mm

Outlet Location: Bottom Right

Radiator Cap Included: Yes

Tank Material: Aluminum

Thermostat Included: No

Fitment: 89-94 Nissan Skyline R32 RB20DET/RB26DETT

Details:

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from. Each end tank is CNC machined billet aluminum giving them incredible strength and durability. CNC machining offers incredible precision and uniformity. The results are perfectly produced end tanks that perfectly match up with the ends of the 42 mm core. Hand TIG welding joins the tanks to the core creating the strongest radiator on the market for the R32 Skyline. Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot. The CSF #7217 comes in a raw billet aluminum finish. Also available in Black (CSF #7217B).


Features and Benefits

  • CNC Machined 100% Billet Aluminum End Tanks

  • Raw Billet Aluminum Finish

  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

  • Individually Leak and Pressure Tested

  • OE Location Fan Shroud Mounting Points

  • 2-Year Limited Warranty

  • Limited Production

  • 2-Row - 42mm Ultra-High-Performance Core

  • 75 Cooling Tubes with CSF's Exclusive B-Tube Technology

  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

  • CNC Machined Mounting Pins and OEM Style Inlet/Outlet

  • 1/8th NPT Temp Sensor Port on Top End Tank

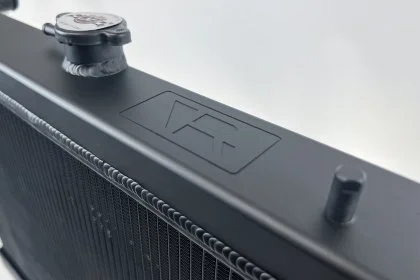

  • Top Rank Logo machined into Top End Tank and Painted on Core

  • 100% All Aluminum TIG-Welded Construction

  • 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
