Part Number: 12020217

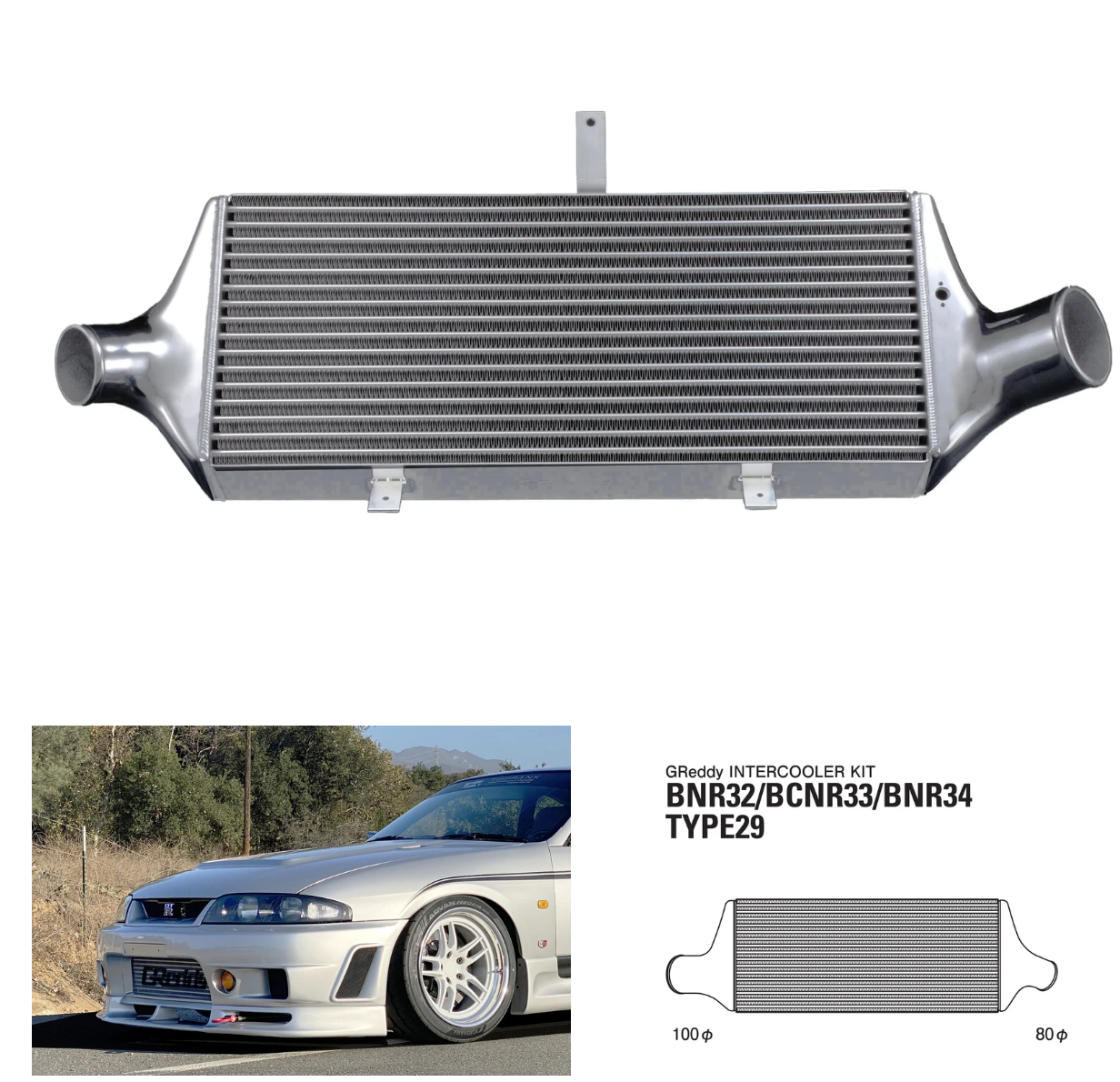

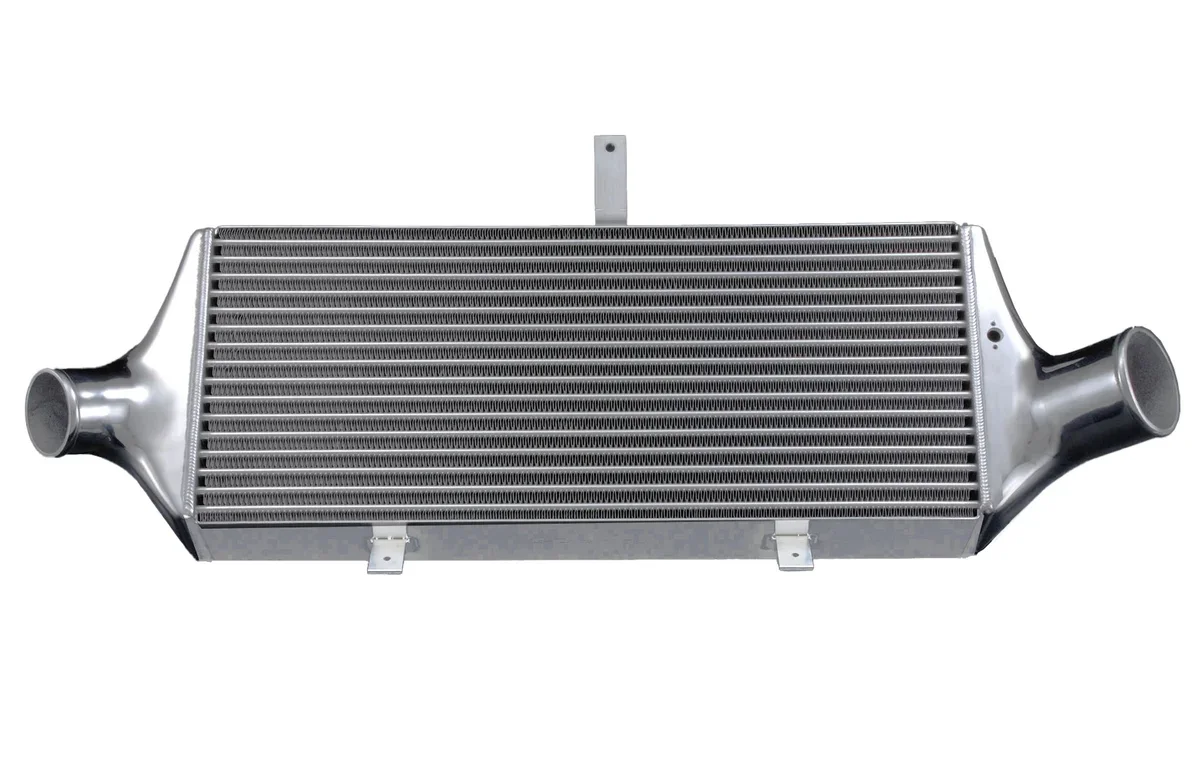

Description: Intercooler Kit

Fitment: 95-98 Nissan Skyline GTR R33 RB26DETT

Notes: Not for sale in California not CARB Legal

Details:

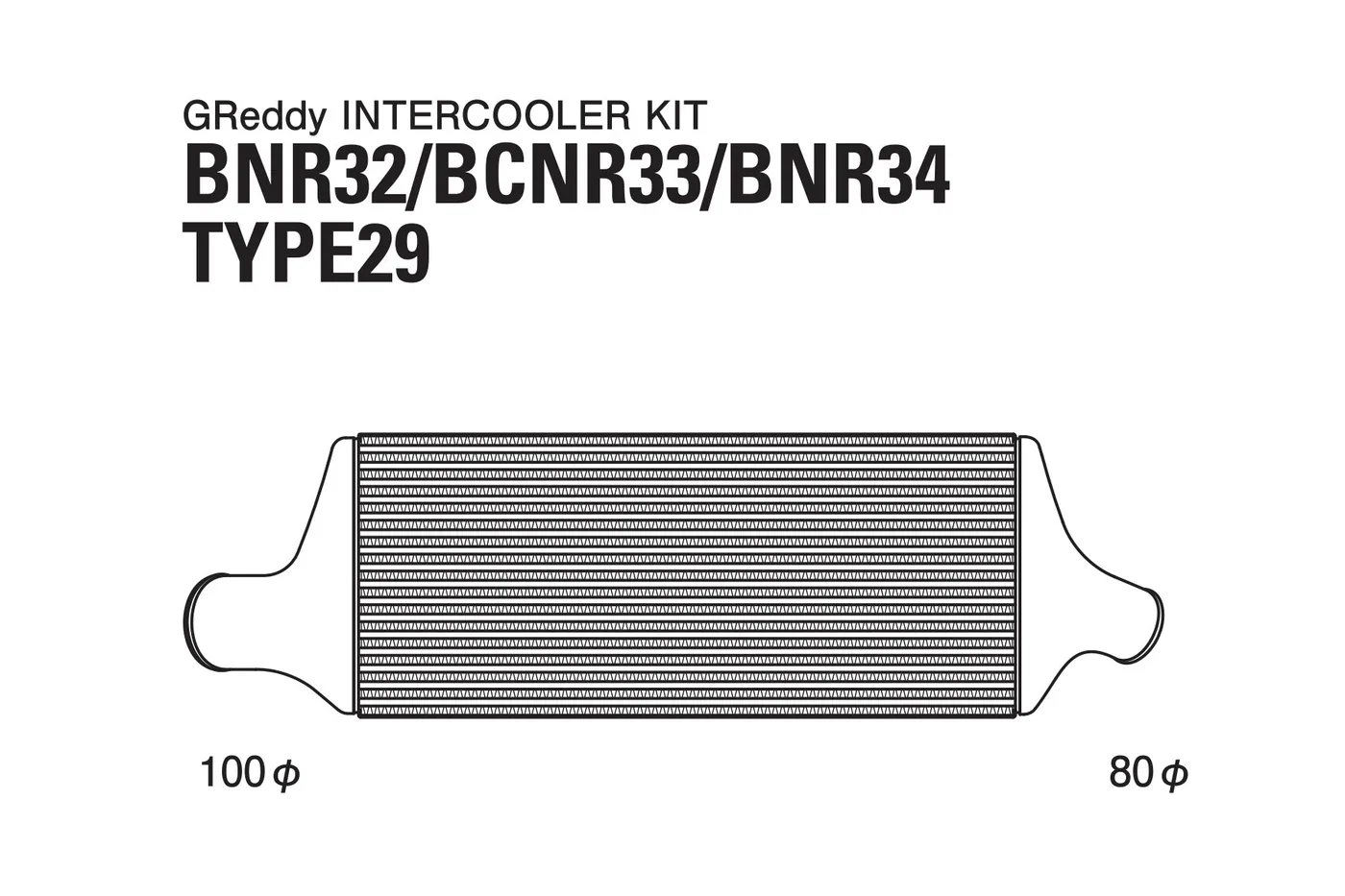

Genuine replacement TYPE29F IC outlet diameter 100Φ

Specification

• Core type: TYPE29F

• Core size: H302/L710/W100

• Installation position: genuine replacement

Remarks

• Compatible with GReddy turbine kit.

• I/C exit diameter 100φ. For MT only.

• * O/C kit can be installed at the same time

• *Reinforce processing required

• *Bumper processing required

Compatible model: Skyline GTR

Compatible model:
BCNR33 Year : 95.01-98.12
CODE: 12020217

Chassis: BCNR33
Engine: RB26DETT
Type:  Upgraded Large Type 29 (L710mm X H302mm X W100mm) intercooler core with cast GReddy endtanks, especially designed for the RB26DETT of the BCNR33 Skyline GT-R.  80mm inlet and 100mm outlet.  - for vehicles equipped with GReddy intake manifold plenum.

For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
*This product is illegal to be driven on public roads in the USA.

Product features

• Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.

• The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.

• The inner fin uses an offset inner fin.The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."

• Optimized pressure loss and cooling effect to support high-level high boost tuning.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.
