Part Number: 12020218

Description: Intercooler Kit

Fitment: 99-02 Nissan Skyline GTR R34 RB26DETT

Notes: Not for sale in California not CARB Legal

Details:

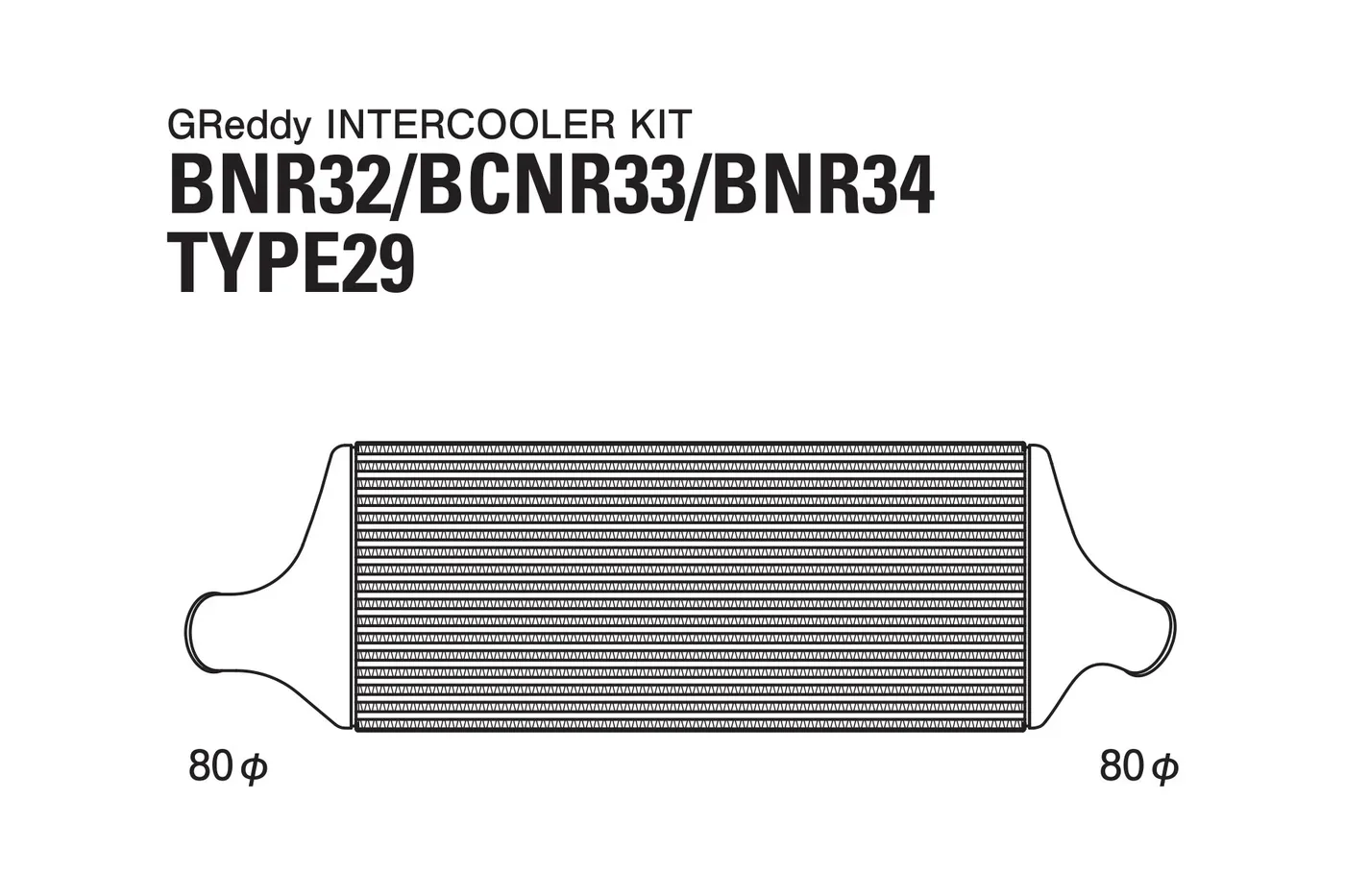

Genuine replacement TYPE29F IC outlet diameter 80Φ

Specification

• Core type: TYPE29F

• Core size: H302/L710/W100

• Installation position: genuine replacement

Remarks

• Compatible with genuine turbine & GReddy turbine kit.

• For MT only.

• * O/C kit can be installed at the same time

• * Pipe SET can be installed at the same time

• *Reinforce processing required

• *Bumper processing required

Compatible model: Skyline GTR

Compatible model:
BNR34 Year : 99.01-02.08
CODE: 12020218

Chassis: BNR34
Engine: RB26DETT

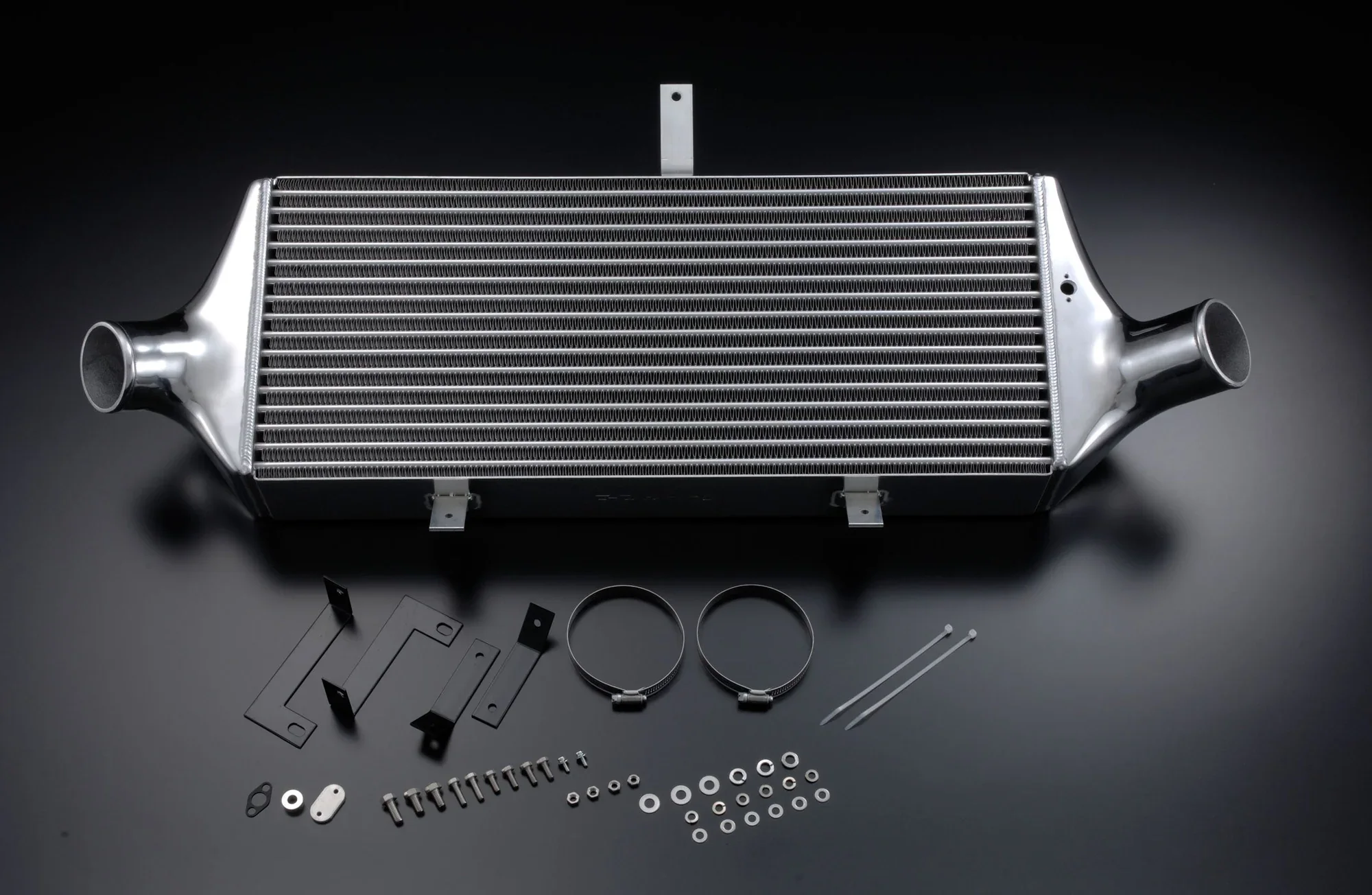

Type: Upgraded Large Type 29 (L710mm X H302mm X W100mm) intercooler core with cast GReddy endtanks, especially designed for the RB26DETT of the BNR34 Skyline GT-R.  80mm inlet and outlet.  - for stock intake plenum.

Product features

• Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.

• The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.

• The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."

• Optimized pressure loss and cooling effect to support high-level high boost tuning.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
*This product is illegal to be driven on public roads in the USA.
